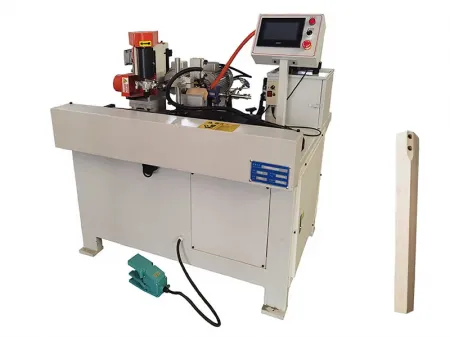

Automatic Hole Boring Machine, Wood Triangle Drilling Machine
Request a Quote
The automatic hole boring machine is often used to drill holes on all sizes of wood triangles. It uses programmable logic controller (PLC) to ensure the operation is easy, safe and adjustable. Its main components all come from world-famous suppliers, such as Schneider, ensuring the safe and stable machine operation.
Specification| Model | MD-04 |
| Spindle number | 3pcs |
| spindle motor | 1.5kW*3 |
| Spindle stroke | 80mm |
| Max. processing width | 35-90mm |
| Max. processing length | 70-150mm |
| Processing thickness | 20-30mm |
| Mechanical dimensions (L*W*H) | 1200*1800*2100mm |
| Machine weight | 250kg |
