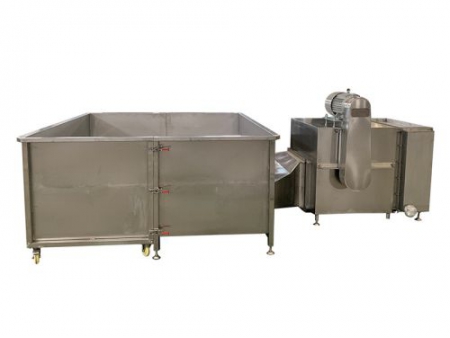

HGX Series

HGX series box-type vegetable dryer is the result of Walley's 27 years of continuous research and development. We have successfully produced over ten different specifications of products, including the HGX-Z steam dryer, HGX-Q gas-fired dryer, and HGX-D electric heating dryer. These dryers have gained popularity among users worldwide due to their exceptional performance. Box type dryers are currently recognized as the most widely used and economically practical vegetable drying equipment available in the market.

Applications

Box-type dryer is particularly suitable for products with high sugar content, such as diced carrots and chopped kale leaves after adding glucose, as well as products with high viscosity, such as kelp.

Samples
  • Fresh Cucumber
  • Dried Cucumber
  • Fresh Daylily
  • Dried Daylily
Walley provides different types of box type dryers

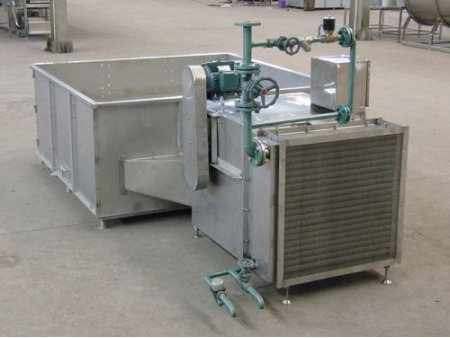

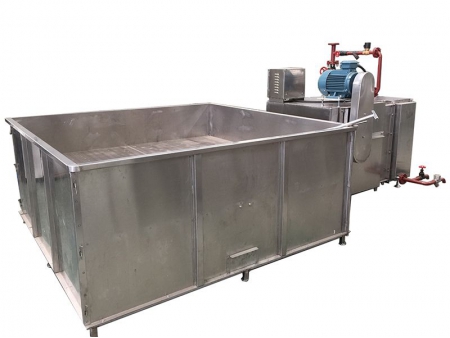

HGX-Z Steam Vegetable Dryer

Recommendation Reason: Affordable price, high maneuverability, and small footprint.

Specifications

Dimensions
(L×W×H) (mm)
Blower Steam consumption (kg/h) Temperature adjustment (℃) Drying area (m²) Drying capacity (kg H2O /h)
Air flow (m3/h) Air pressure (Pa) Power (kW) Quantity
3750×2000×1590 11000 548 5.5 1 < 300 < 110 4 24-120

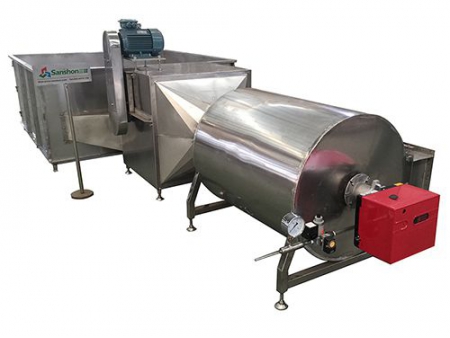

HGX-Q Gas-fired Vegetable Dryer

Recommendation Reason: With natural gas as the fuel and no need for steam, the gas-fired vegetable dryer is suitable for countries where natural gas is the primary energy source.

Specifications

Dimensions
(L×W×H) (mm)
Blower Burner (imported)
Air flow (m3/h) Air pressure (Pa) Power (kW) Fuel Gas consumption (m3/h) Temperature adjustment (℃)
5200×2000×1300 11000 548 5.5 Natural gas < 10 < 110

Box-type vegetable dryer is economical, affordable, easy to operate and highly practical. It allows for flexible combinations of units according to production needs.

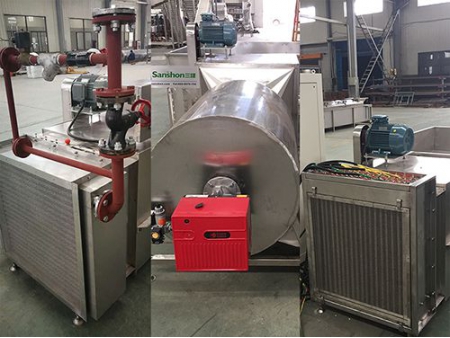

Multiple heating sources are available, including steam heating, natural gas heating, and electric heating.

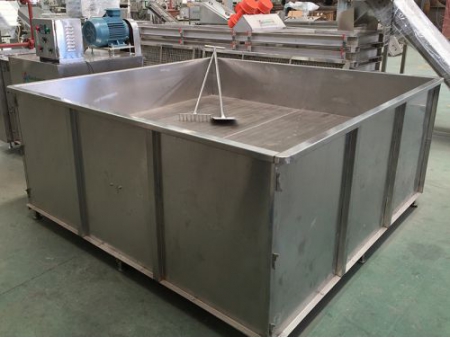

The entire box is made of durable and sanitary 304 stainless steel, meeting the requirements for food safety and hygiene.

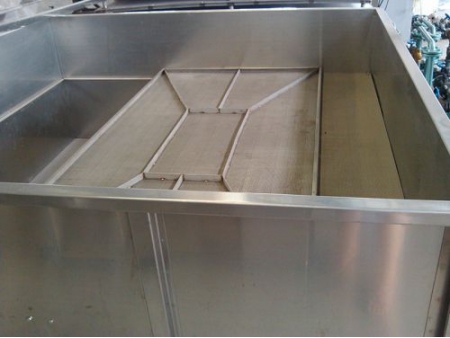

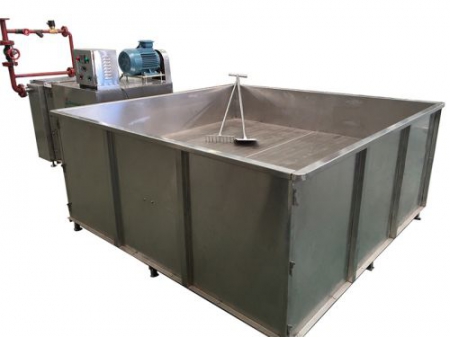

The two-piece flip-type bed surface and the cleaning door on one side of the box make it easy to clean waste materials from inside the dryer.

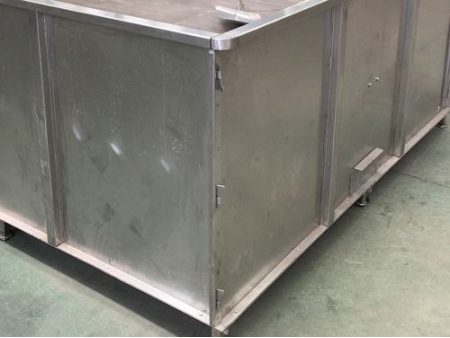

The box body panels are fixed using latch connections, making it easy to disassemble and assemble. This not only saves packaging space but also reduces installation time and effort.

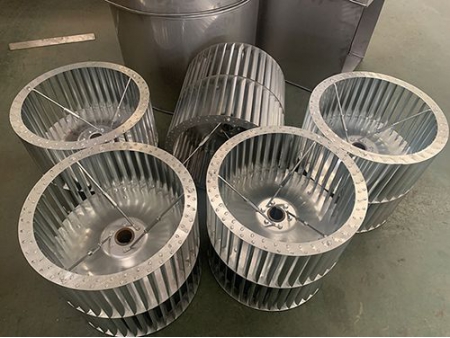

The high-flow high-pressure centrifugal fan impeller features a uniquely structured inlet funnel coupled with punched plate that delivers uniform air, therefore ensuring high drying efficiency.
