Bulletproof shields on the market are classified by usage type into handheld bulletproof shields, handheld bulletproof shields mounted on wheel-based frame, and special bulletproof shields. The handheld one made from pure PE is the most widely used.

Bulletproof shields with the protection levels of NIJ IIIA, NIJ III and NIJ IV can respectively withstand the threat of pistol bullets, rifle bullets and rifle armor-piercing bullets. Longkui is committed to improving and updating more flexible and lightweight bulletproof shields for field combat, and actively cooperating with domestic and foreign customers to develop bulletproof shield with better performance.

The bulletproof shield is composed of a shield, an observation window, a handle, a cushion and a belt for arm fixation.
Made of UHMWPE fiber, the ballistic shield is suitable for public security police, armed police soldiers and anti-terrorist forces to carry our tasks such as combating gun criminals for its features of light weight, convenience and flexibility of use and observation, no ricochet, no bulletproof dead zone, ability to eliminate non-penetrating injuries, and resistance to bullet, riot, water, UV and blunt.

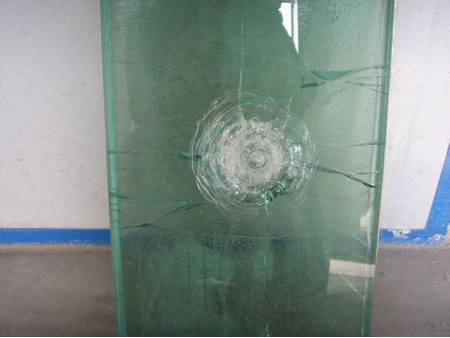

The shield is equipped with a transparent ballistic window with the light transmittance greater than or equal to 70%. The size of the observation window is W185mm ×H75mm. The bulletproof glass structure used in the observation window is composed of 8.0mm thick glass, 1.52mm thick PVB, 8.0mm thick glass, 1.25mm thick PU and 4.5mm thick PC board in turn.

Connection strength: The hand-held handle is of a rigid structure; and the joint connecting the handle and the shield is subjected to a tensile force of 600 N without cracking.

Flame retardant property: the after-flame time of the outside surface of the shield is ≤10s.

Validity period: 5 years (since the date of production)

• Protection level: NIJ IIIA
• Material: UHMWPE fiber
• Size: 900*500mm
• Protection area: 0.45m²
• Ambient temperature: -25℃~+55℃
• Executive standard: NIJ 0101.06 LEVEL IIIA
• Protective gun type: 1979 7.62mm light submachine gun
• Protective bullet: 1951 7.62mm bullet (lead core)
