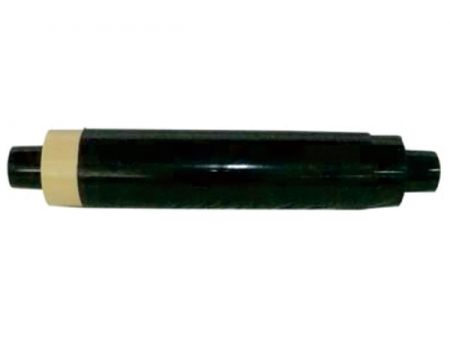

Scope of Application
  • Straight through joint: WYJJTI
  • Shield-break joint: WYJJJI
  • Rated voltage: 72.5kV (applicable to 120-1600mm²)
    126kV (applicable to 240-1600mm²)
    145kV (applicable to 240-1600mm²)
    252kV (applicable to 400-2500mm²)
Download
Features
  • The external protection layer adopts a high-strength protective shell and a waterproof and insulation sealing structure, which has good mechanical and sealing properties and excellent corrosion resistance, ensuring long-term and safe running under harsh environments;
  • The joint is compact and easy to install, the creepage distance inside the rubber insulation is long and the design margin is large, guaranteeing long-term operation, especially in a particularly damp area.
  • Good explosion-proof performance, which prevents fragmentation from accidents and endangers personal and equipment safety.
  • The outmost layer is protected by a GRP enclosure and the interior is painted with waterproof adhesives to strengthen the resistance to water and explosion.
  • Type tested according to IEC 60840, GB/T 11017, IEC 62067, and GB/T 18890.
Dimensions

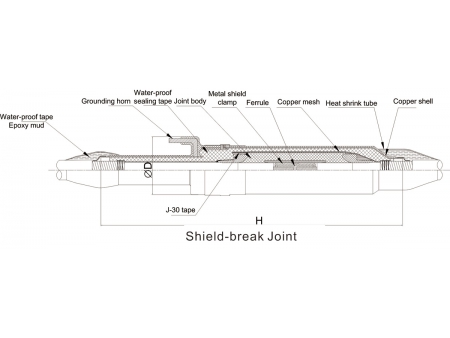

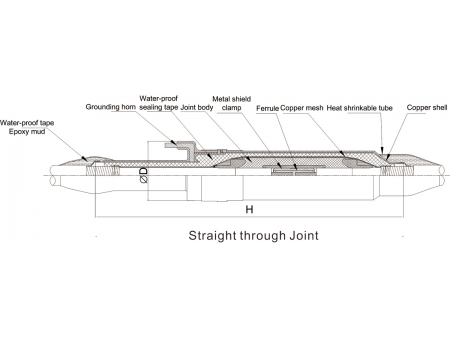

Max. system voltage H (mm) D (mm)
72.5-145kV 1600 270
252kV 2100 370
Notice When Ordering:
  • Cable configuration and the cross-sectional area of earth wire shall be provided when ordering.
  • Welcome to contact our sales manager for any special requirements before placing your order.
