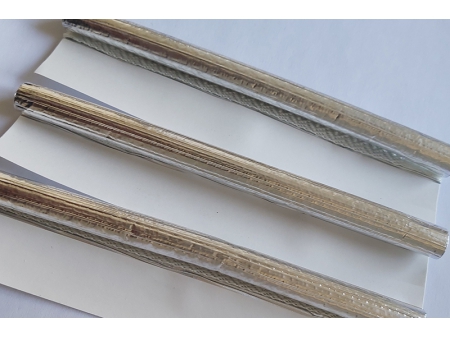

Thermo Shield Wrap
Material: Aluminum and fiberglass
Working temperature: -50℃~ 200℃
Color: silver
Certification: RoHs/ELV
Cutting: scissor or by cutting machines
Thermal insulation: test method according to SAE J2302
Oil resistance: See GMW 14327 pass

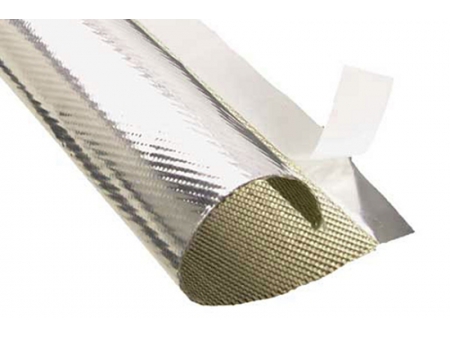

Aluminum fiberglass self-closing wrap is made of aluminum foil, fiberglass and polyester. It is designed to provide maximum protection for wires, hoses, and cables from the very damaging effect of radiant heat with an easy application. Simply pull apart the material, wrap around the wire, and re-close the wrap.
The easy to use wrap is a combination of a high temperature insulation material to a highly reflective aluminum foil with a glue closure. It is also fireproof, fire resistant.
Application
The thermo shield wrap is widely used in automotive wiring harness protection, and also be applied to high voltage and high temperature environments.
| Item | Inner diameter | Flat width | Thickness | |
| OAF-009 | 8,9mm | 42 | 0,6mm±0.1 | |
| OAF-013 | 12,7mm | 70,0mm | 0,6mm±0.1 | |
| OAF-019 | 19,1mm | 90,0mm | 0,6mm±0. | |
| OAF-026 | 25,4mm | 115,0mm | 0,6mm±0. | |
| OAF-032 | 31,8mm | 120,0mm | 0,6mm±0. | |
| OAF-038 | 38,1mm | 150,0mm | 0,6mm±0. | |
| OAF-045 | 44,5mm | 180,0mm | 0,6mm±0. | |
| OAF-050 | 50,8mm | 195,0mm | 0,6mm±0. | |
| OAF-060 | 57,2mm | 205,0 | 0,6mm±0. |
