Bulletproof Glass

Request a Quote

View All: http://glass-manufacturer.com/4-4-bulletproof-glass.html

Color: clear

Thickness: various solutions from 19 mm to 89 mm

Size: 1650*2140 mm, 1650*2440 mm, 1830*2440 mm, 2000*2440 mm, 2140*3300 mm, 2140x3660 mm, 2250*3300 mm, 2440*3660 mm, and etc.

Standard: AS/NZS 2208:1996 (Australia) and EN 14449:2006 (EU)

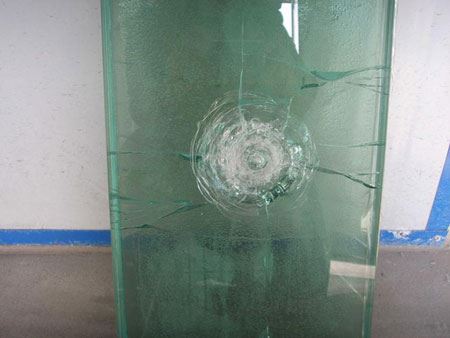

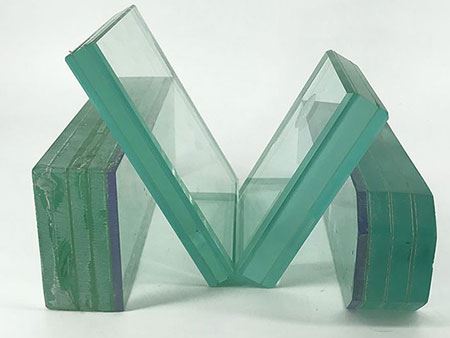

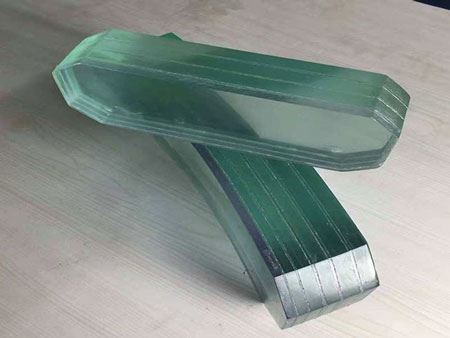

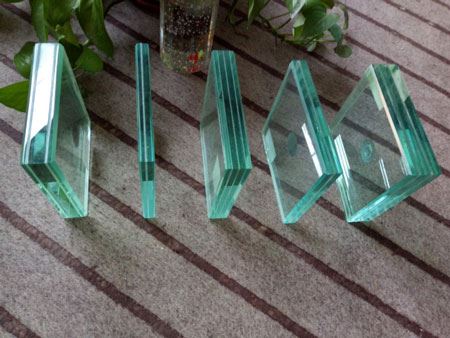

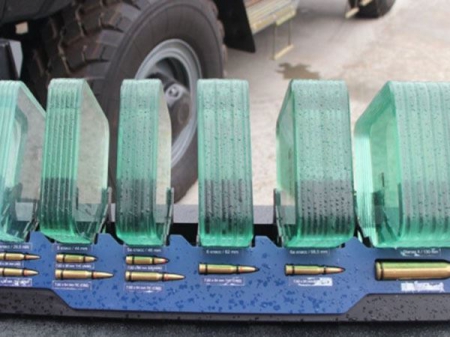

Bulletproof glass is a composite material that is made by bonding multiple pieces of glass and high-strength organic sheets together using transparent adhesive materials such as PVB film or SentryGlas Plus (SGP) film. The material is typically transparent and is also known as SGP laminated glass.

There are three layers that make up bulletproof glass:

Load-bearing layer: it is the first layer that can withstand impact and shatter. Generally, it is made by thick and high-strength glass, which can deform or even destroy the bullet, preventing it from continuing to move forward.
Transition layer: it is generally made by organic adhesive materials that have strong bonding force and good light resistance. It can absorb some of the impact energy and change the direction of the bullet’s movement.
Protective layer: it is generally made by elastic, tough and high-strength glass, which absorbs most of the impact, ensuring that the bullet cannot penetrate the layer.

Advantages of Bulletproof Glass

High bomb blast resistance
Good resistance against heat, radiation and moisture.
Adaptive to various environments
Not easily penetrated by projectiles

Applications of Bulletproof Glass

Bulletproof glass for automotive use is applied on armored cash transport vehicles, as well as military and police vehicles.
Bulletproof glass for non-automotive use is applied in places that may face gunshots or contain valuable properties, such as bank counters, vaults, jewelry stores, police stations, and shooting ranges.
