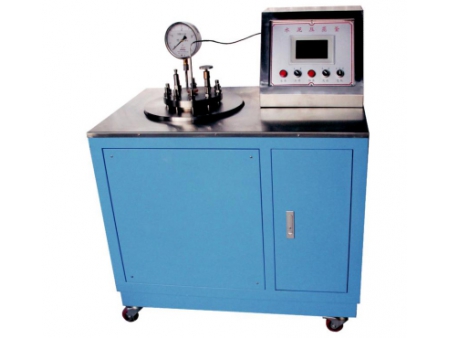

TBTYZF-1 Cement Autoclave

TBTYZF-1 cement autoclave is used for determining the soundness of cement.

This cement autoclave is available in analogue style, or digital style. The control panel can enclose a pressure sensor to collect data and visualize the inside pressure and temperature.

Technical Parameters

Max. pressure inside the vessel	2~2.2Mpa
Max. temperature	216℃
Heating capacity	0.6kW/1.2kW
Distilled water volume	1000ml
Power supply	220V
Weight	130kg

TBTYZF-2 Cement Autoclave

TBTYZF-2 cement autoclave is intended for determining the cement soundness to evaluate the stability of cement. The main material is stainless steel which has great resistance to high temperature, high pressure and steam.

Technical Parameters

Vessel volume	8L
Inside diameter of vessel	Φ149mm
Max. working pressure	2Mpa (adjustable)
Standard pressure loading time (0~2±0.05Mpa; room temperature~215.7 ± 1.3℃)	45~75min
Pressure range	≯±0.05Mpa
Holding time setting	3h
Safe temperature setting	220℃
Power supply	220V
Power consumption	1200 600W

TBTYZF-2D Cement Autoclave

TBTYZF-2D cement autoclave is one-piece digital displayed autoclave that is used for determining the soundness of cement. It is digital style with pressure sensor to collect data and visualize the inside pressure and temperature.

Technical Parameters

Vessel volume	8L
Inside diameter of vessel	Φ149mm
Max. working pressure	2Mpa (adjustable)
Standard pressure loading time (0~2±0.05Mpa; room temperature~215.7±1.3℃)	≈45min
Safety valve opening pressure	3.0Mpa
Pressure range	≯±0.05Mpa
Holding time setting	1~99h
Power supply	220V
Power consumption	1200 600W
Dimension	1000x660x1320mm
Weight	Around 75kg
