SM-500 Cement Test Mill

Request a Quote

View All: http://tbttek.com/3-11-sm-500-cement-test-mill.html

SM-500 cement test mill is used to grind cement clinker and other materials in the laboratory.

Technical Parameters

Inside dia. of barrel and length	φ500×500mm
Grinding medium	100kg
Material size	< 7mm
Loading capacity	≤5kg
Barrel speed	≈48r/min
Grinding time	≈30min
Net weight	≈300kg

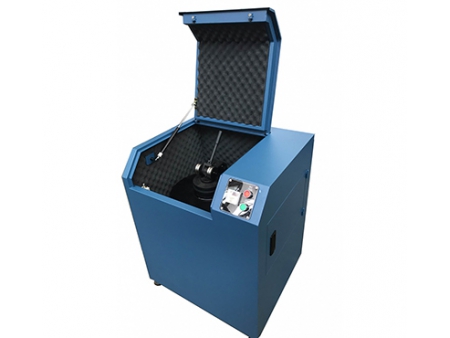

TBTZM-1 Cup Mill is designed for preparing powdered substance for X-ray fluorescence(XRF) Analysis. This vibration mill guarantees a high degree of reproducibility in the preparation of samples.

Technical Parameters

Rotation rate (rpm) 910
Vessel volume (cm3) 100
Feed grain (mm) ﹤5
Dimension (m) 0.55×0.75×0.94
Net weight (kg) 230
Power supply AC380, 3∮, 50Hz
Nominal power (kw) 1.1
3-Phase AC 380V
Permissible deviation ±5%
Frequency 50Hz
Power 1.1kW

This grinding cup mill is used in laboratories to crush and grind sample particles sizes smaller than 6mm. After the crushing and grinding process, the output powder fineness is 0.1mm (120-200 mesh).

The grinding mill features a streamlined mechanical structure with a tight cover and continuously accepts feeding samples. It is among the most advanced crush and grinding equipment available on the market today.

Technical Parameters

Grinding Cup diameter Φ175mm
Feeding particle size ≤6mm
Discharge fineness 0.1mm
Capacity 25kg/hr
Motor power 1.5kw
Dimensions 750×550×400mm
Equipment weight About 180kg
