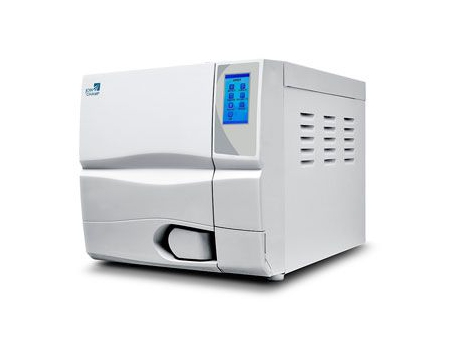

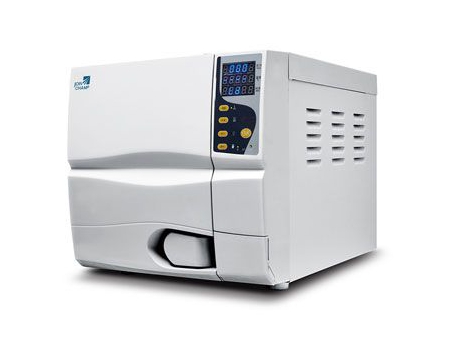

Steam Autoclave LEOPARD Series, Dental Autoclave
The steam autoclave LEOPARD series is capable of conducting disinfection treatment for surgical instrument, dental appliance, surgical dressing, laboratory glassware, injection device and other autoclavable instruments. It is primarily used in operating theaters, dental rooms, ophthalmology departments and biomedical research institutes.
| Model | Voltage | Frequency | Power | Volume | Size of chamber | N.W |
| | AC220V | 50/60Hz | 2000W | 18L | 250×355mm | 47kg |
| | AC220V | 50/60Hz | 2200W | 22L | 250×450mm | 51kg |
- Our steam autoclave is in accordance with European Standard of Class B, in line with EN13060 safety test. It has 1-time and 3-time pulsating pre-vacuum technology and drying function.
- The vacuum degree of our dental autoclave can reach up to -82Kpa, and the dryness of at least 99.8%. In general, this device is suitable for sterilization of wrapped and unwrapped solid load, as well as hollow and porous internal pipe equipment.
- The LEOPARD series adopted imported super bright blue light digital display, microcomputer intelligent control, automatic fault detection, and code alarm for better performance of the device.
- With the use of imported Omron waterproof buttons, the keys are durable for thousands of working times. Also, there is an external micro-printer that can be purchased optionally.
- Sterilization temperature: 121°C, 134°C
- 4 types of sterilization programs: unwrapped, wrapped, cotton, rubber
- 3 types of test procedures: water quality test, vacuum degree test, Bowie & Dick test (B&D test)
- The LEOPARD series steam autoclave is equipped with ATMEGA32A high-speed control chip. This leads to good performance, high accuracy, latest PID control algorithm, as well as effective combination of hardware and software protection measures of the product. This type of control chip ensures reliable operation of equipment with low failure rate of the device.
-
The customized solenoid valve for our steam autoclave has a large latus rectum. This demanding valve controls the temperature in the device, assisting in the good performance of the autoclave.
The jet-type of steam generator enables quicker heat up times, as well as better penetration leading to reduced cycle times. Hence, the steam autoclave has efficient drying process and longer service life.
-
-
The top-mounted water tank has passed strict quality assurance, which guarantees the safety and reliability. Also, due to its location, the water tank is more convenient for cleaning.
The high quality stainless steel liner and tray are available in our steam auclave, which are the best sterilizing option that can save space and accommodate more equipment in the sterilizer.
-
-
The drainage valve is equipped in the product, which is used for cleaning and changing clean water, and it has high-speed operation and convenience characteristics.
