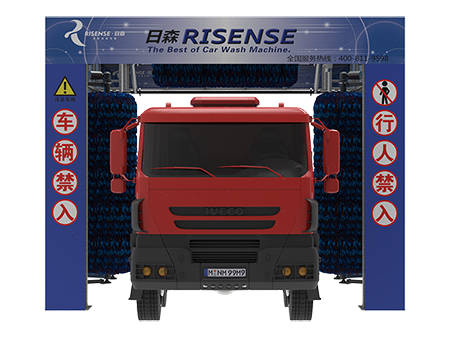

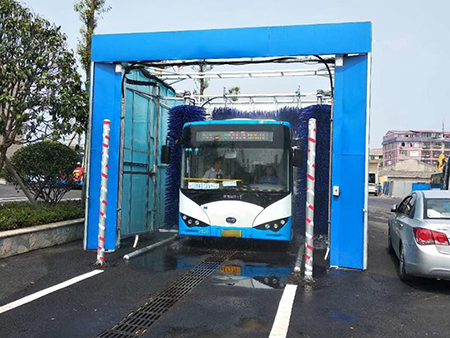

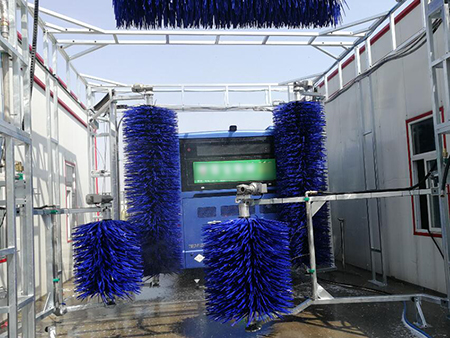

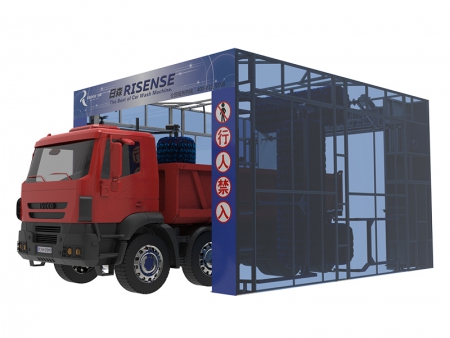

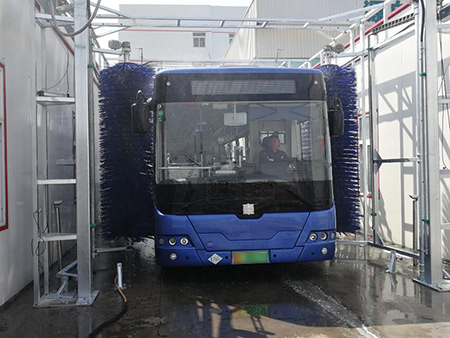

The drive through bus wash system with 5 brushes (CB-750) features a PLC fully-automatic computer system to improve the security and high pressure water system, which increases the washing speed. The bus system washes both buses and trucks using 4 lateral brushes and 1 overhead brush. Further details are shown in the table below.

Parameters
Bus truck wash machine CB-750
Overall dimension 7420*5400*4400mm or 7420*5400*5500mm
Installation size 8500*6000mm
Air source Air pressure: 0.75-0.9MPa (7.5-9kg/cm2)
Voltage 380V, 50Hz (5-wire system)
Water supply Pipe diameter: DN25, water flow ≥120L/min
Ground flatness Deviation≤10mm
Normal washing method Drive through type
Available car to wash Container, container truck, bus truck
Car washing dimension ≤3000*≤2800*≤3500mm or ≤3000*≤3900≤4400mm
Bus washing capacity 25-30 cars/hour
Water consumption 180-240L/car
Power consumption 0.15-0.25kW/car
Shampoo consumption 20-25ml
Long vertical brushes 2
Short vertical brushes 2
Top brush 1
Frame Hot-dipped galvanized steel frame
Brush and pipe material Alloy steel pipe, integral nylon brush/foam brush
Side brush motor SITI from Italy
Driving motor SITI from Italy
Water pump Youli
Intelligent device data Management, checking, operation
Self-diagnosis Available
Advantages
  • The fully automatic PLC electronic control system improves the security.
  • A high pressure water system increases the washing speed.
  • The galvanized frame is extremely corrosion resistant.
  • A built in self-diagnosing system automatically detects and removes mechanical obstacles during the washing process.
Details
  • PLC system

  • SITI motor for brushes

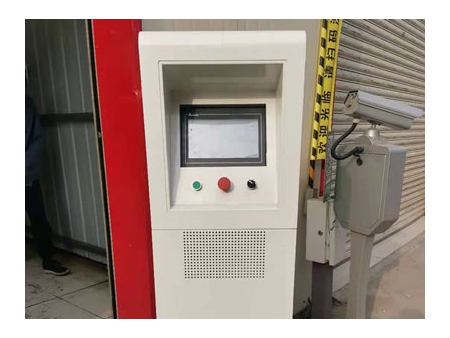

  • Touch screen

  • Foam brushes

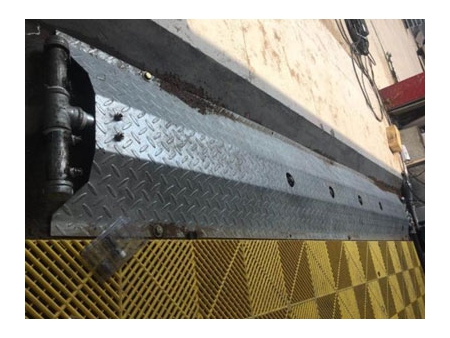

  • Undercarriage wash system

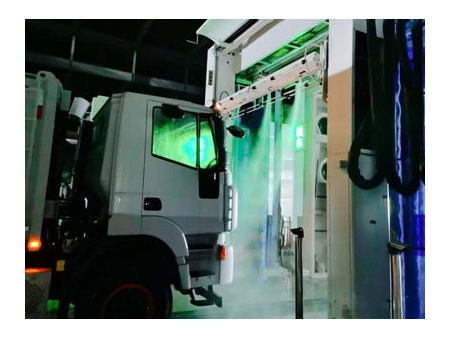

  • Pre-wash gantry

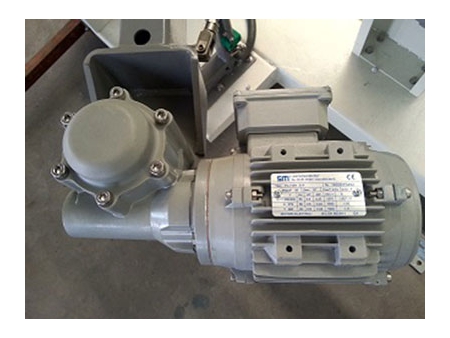

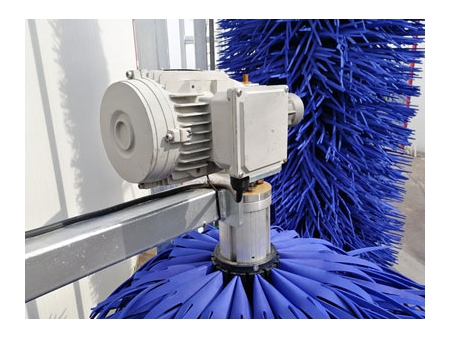

  • Motor for brushes

    SITI motor performs well in terms of water-proofing and service life.

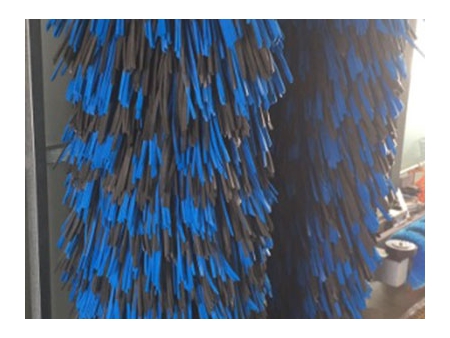

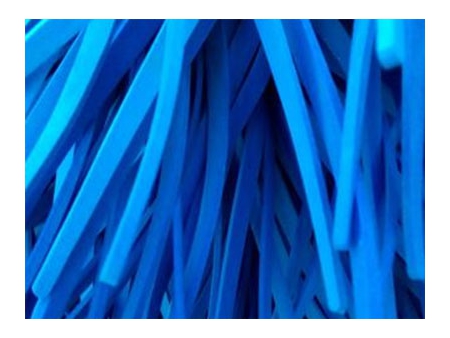

  • Foam/nylon brushes

    5 brushes of Risense’s bus wash system are made of imported 4th generation of foam or nylons. They thus have the advantage of softness, gentleness and cleanness. Its capacity to retain water optimizes the washing performance.

Configurations
Standard Devices
Lateral brush motor
Overhead brush motor
Water pump
Drive motor
Equipment data intellectualization
Self-diagnose system
