Tunnel Car Wash Equipment CC-695 (14-Brush)
Request a Quote

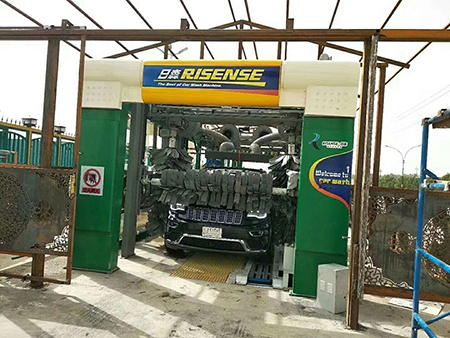

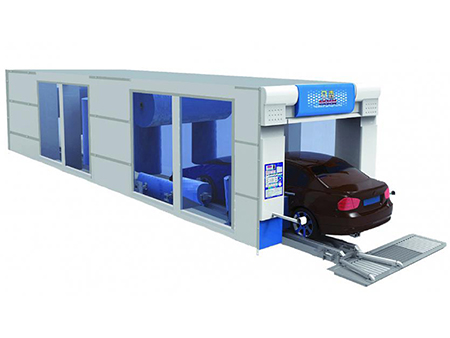

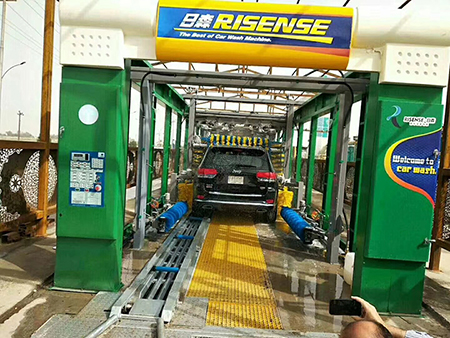

Risense’s car wash tunnel system with 14 car brushes is suitable for washing sedans, jeeps, minibuses with up to 10 seats, and other vehicles. The conveyor tunnel car system features a PLC fully-automatic computer control system to improve the security. 4 powerful dryers are equipped to quickly dry the washed and wet vehicles. For more information, please consult the table below.
Parameters
| Tunnel car wash machine CC-695 | |
| Overall dimension | 16380*3800*3440mm |
| Length of conveyor:17280mm (including wheel guide) | |
| Installation size | 17580*4000mm |
| Voltage | AC 380V 50Hz (5-wire system) |
| Water-source requirement | Pipe diameter: DN25, water flow≥200L/min |
| Air supply | Air pressure: 0.75-0.9MPa, air flow≥0.1m³/min |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car\jeep\coach within 10 seats |
| Moving range | 5300*2100*2100mm (wheelbase≤3.2m) |
| Car wash capacity | 45-55 sets/hour |
| Water consumption | 155L/car |
| Power consumption | 0.8kW/car |
| Shampoo consumption | 20-40ml/car |
| Wax consumption | 30ml/car |
Key parts
| PLC | Mitsubishi from Japan |
| Optoelectronic monitoring | Banner from the USA |
| Brush rotating motor | SITI |
| Contactor | Schneider from France |
| Proximity Switch | Pepperl Fuchs from Germany |
| Small brush cylinder | AirTAC |
| Wax suction pump | Bello Zon from Germany |
| Hot-dipped galvanized frame | 1 group |
| Shampoo spray system | 1 group |
| Wax spray system | 1 group |
| Contour-following drying system | 1 group |
| Car entry guide rail apparatus | 1 group |
| Chassis spraying system | Can be added |
| High pressure water spraying device | Can be added |
| Equipment data intellectualization | Management, spot check, operation |
| Self-diagnose system | Automatic fault display, self-checking |
| Short vertical brushes | 4 |
| Lifting top brush | 1 |
| Fixed long vertical brushes | 2 |
| Moving long vertical brushes | 2 |
| Horizontal tire brushing system | 2 |
| Side drying brushes | 2 |
| Top drying brush | 1 |
Advantages
- The galvanized frame of the tunnel car wash system is solid and durable
- A high pressure wash system improves the washing performance.
- The foam and water wax proportioning system is easy to use.
- 4 groups of powerful dryers.
- The liquid automatic siphon is simple to operate.
- Multiple cleaning and long term washing will completely wash the car, and ensure a superior washing performance.
- The PLC full-automatic computer control system ensures a higher security.
- The one-click washing method is easy to operate.
- A contour-following drying system creates better drying performance.
Car Wash Tunnel System with 14 Car Brushes CC-695 Configuration
| Standard Devices | Optional Devices |
| Hot dip galvanized frame | Undercarriage wash system |
| Shampoo spray system | High-pressure water devices |
| Water wax spray system | Swing blow drying system |
| Contour-following drying system | |
| Car entry guide rail apparatus | |
| Equipment data intellectualization | |
| Self-diagnose system |
