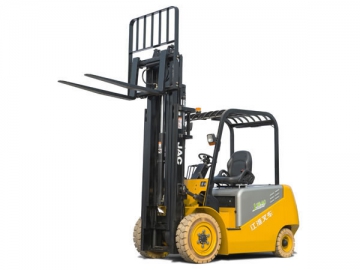

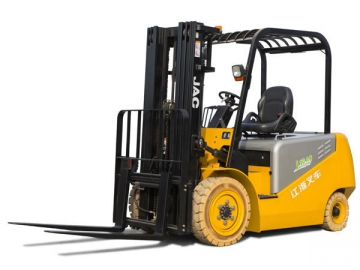

Electric Forklift (3-3.5T Four Wheel Forklift, J Series)
| Model | CPD30J, CPD35J |
| Rated Load Capacity | 3000kg, 3500kg |
| Motor | DC/AC DC/AC |
| Controller | USA CURTIS controller |
| Battery Capacity | 48V/600AH, 48V/630AH |
| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
Features
1. The J series electric forklift comes with enclosed type dashboard. The simple design of the cab creates comfortable working environment for the operator.

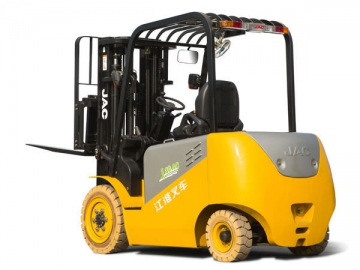

2. The combined type taillight makes this 3-3.5T four wheel forklift attractive and noticeable.
3. The imported CURTIS controller is installed with our patented technology to achieve outstanding heat dissipation effect.

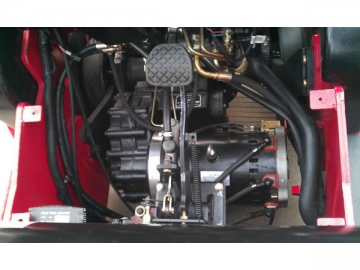

4. Our heavy-duty electric lift truck is engineered with transverse gearbox. Apart from the improvement in the transmission efficiency, the special design helps enhance the single operating time of the battery.

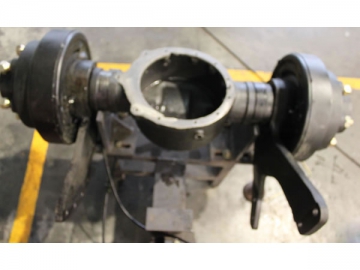

5. Fan-shaped plate-type drive axle of the electric forklift can rotate at 360° angle. So the maintenance of the motor and the gearbox is quite convenient. This technology has been granted national patent.

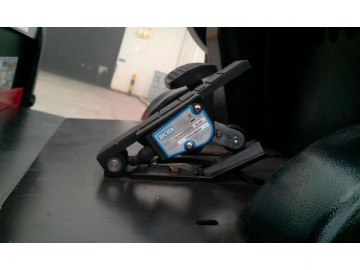

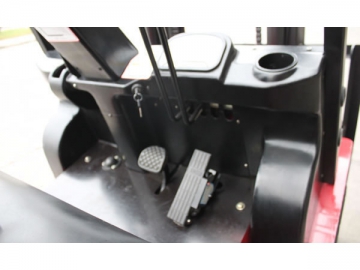

6. Since the foot brake pedal is slightly higher than the CURTIS accelerator, this industrial electric forklift offers high comfort during operation.

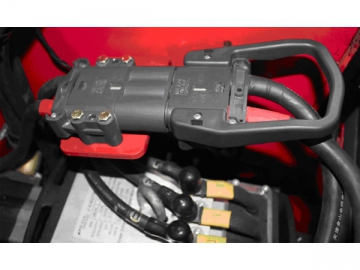

7. REMA power supply connector assembly for convenient connection of power supply.

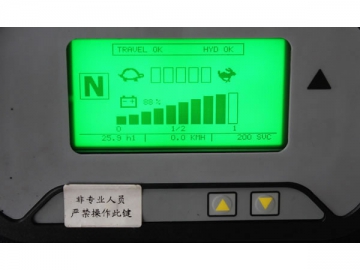

8. The lift truck comes with CURTIS LCD instrument panel with good resistance to water and vibration. The important information can be displayed on the screen completely, enabling the user to understand the working conditions of the product.
| Model | Unit | CPD30J | CPD35J | |
| Load Capacity | Kg | 3000 | 3500 | |
| Load Center | mm | 500 | 500 | |
| Mast Lifting height | mm | 3000 | 3000 | |
| Mast Free Lift | mm | 160 | 160 | |
| Mast Lifting Speed (With Load) | mm/s | 260 | 240 | |
| Mast Tilting Angle (Front/Rear ) | 6°/ 12° | 6°/ 12° | ||
| Driving Speed | km/h | 12.5 | 12.5 | |
| Turning Radius | mm | 2280 | 2280 | |
| Ground Clearance | mm | 120 | 120 | |
| External Dimension | Length to face of forks | mm | 2603 | 2603 |
| Overall width | mm | 1250 | 1250 | |
| Height of overhead guard (cabin) | mm | 2180 | 2180 | |
| Height of mast, extended | mm | 4228 | 4228 | |
| Wheelbase | mm | 1700 | 1700 | |
| Tread | Front | mm | 1000 | 1000 |
| Rear | mm | 970 | 970 | |
| Overhang (front) | mm | 484 | 484 | |
| Fork | mm | 1070 | 1070 | |
| Service Weight | kg | 4960 | 5540 | |
Related Information
HS Code: 8427109000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
