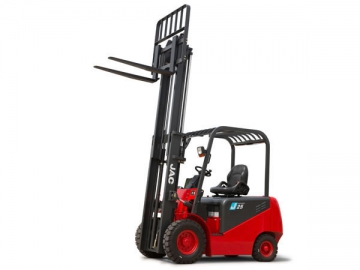

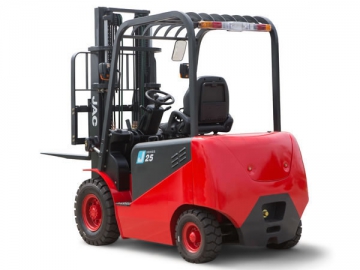

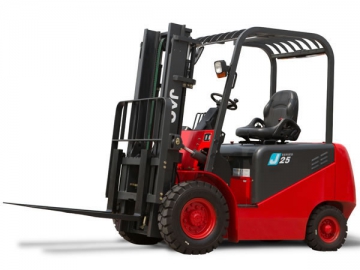

Electric Forklift (2-2.5T Four Wheel Forklift, J Series)
Selling Points
1. The electric forklift of J series adopts fully enclosed dashboard. The neat and orderly cab brings a good mood to the operator.

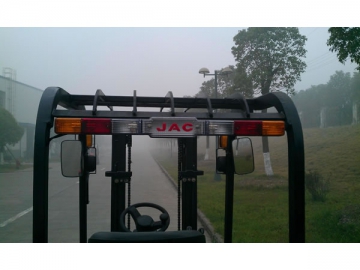

2. Attractive design of the taillight makes this 2-2.5T electric forklift quite safe for use.

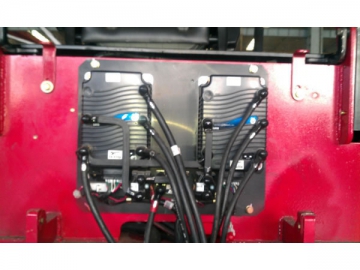

3. The imported CURTIS controller for the warehouse equipment is installed according to our patented technology to achieve outstanding heat dissipation effect.
4. Thanks to the transverse type gearbox, the transmission efficiency and the working time of the battery are greatly improved.

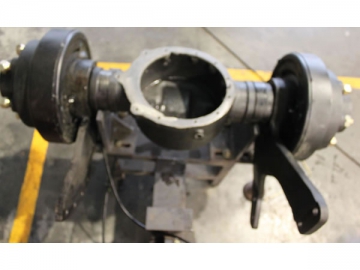

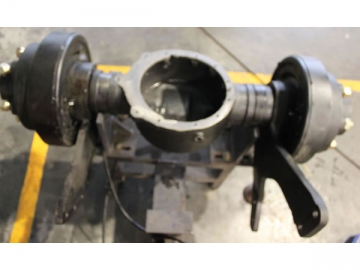

5. The plate-type drive axle, which is granted the national patent, can rotate at the angle of 360°, making the maintenance of the motor and the gearbox quite easier.

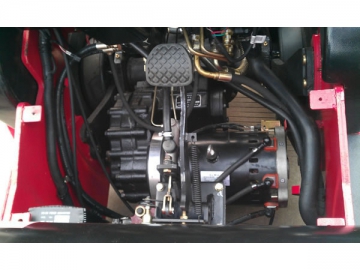

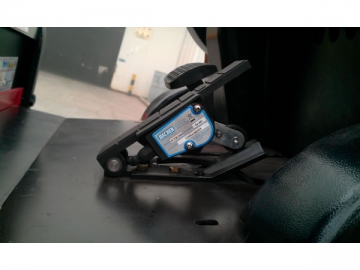

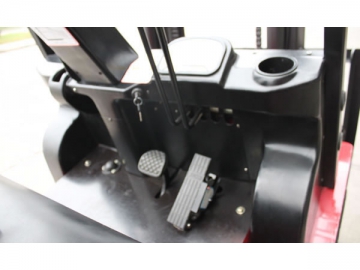

6. This range of electric forklift is installed with CURTIS accelerator. According to ergonomics, the foot brake pedal is designed slightly higher than the accelerator.

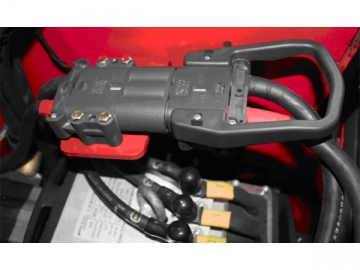

7. REMA power supply connector for convenient power connection
4. Hydraulic load-free induction steering gear and transverse oil cylinder steering system enable labour-saving operation. The steering axle is capable of affording 300,000 times fatigue test.
| Model | Unit | CPD20J | CPD25J | |
| Load Capacity | Kg | 2000 | 2500 | |
| Load Center | mm | 500 | 500 | |
| Mast Lifting height | mm | 3000 | 3000 | |
| Mast Free Lift | mm | 160 | 160 | |
| Mast Lifting Speed (With Load) | mm/s | 280 | 280 | |
| Mast Tilting Angle (Front/Rear ) | 6°/ 12° | 6°/ 12° | ||
| Driving Speed | km/h | 13 | 13 | |
| Turning Radius | mm | 2200 | 2200 | |
| Ground Clearance | mm | 110 | 110 | |
| External Dimension | Length to face of forks | mm | 2435 | 2435 |
| Overall width | mm | 1150 | 1150 | |
| Height of overhead guard (cabin) | mm | 1995 | 1995 | |
| Height of mast, extended | mm | 4030 | 4030 | |
| Wheelbase | mm | 1520 | 1520 | |
| Tread | Front | mm | 973 | 973 |
| Rear | mm | 960 | 960 | |
| Overhang (front) | mm | 465 | 465 | |
| Fork | mm | 1070 | 1070 | |
| Service Weight | kg | 3850 | 4220 | |
| Model | CPD20J, CPD25J |
| Rated Load Capacity | 2000kg, 2500kg |
| Motor | DC/AC DC/AC |
| Controller | USA CURTIS controller |
| Battery Capacity | 48V/600AH, 48V/630AH |
| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
Information Related to Electric Forklift
HS Code: 8427109000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
