Recommended application

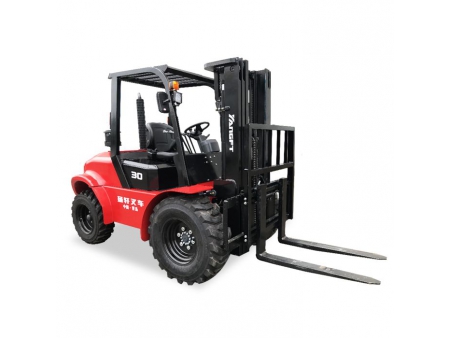

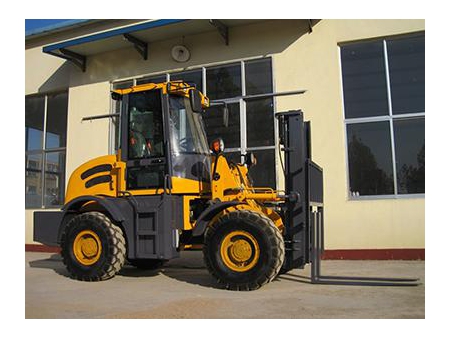

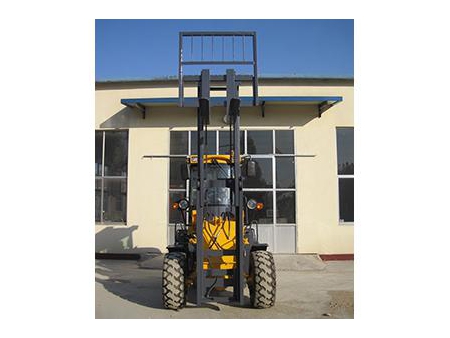

The CPCY25 rough terrain forklift truck is driven by diesel with rated load weight of 2500kg, which can be widely used for loading and unloading, stacking and short distance transportation of all kinds of integrated goods.

Basic parameters
Model CPCY25
Engine Model Xinchai 498(Euro 3 approved)
Engine Power 36.8kW
Displacement 3.168L
Power Type Diesel
Rated Load 2500kg
Cabin Height 1510mm
Load Center 700mm
Lift Height 3000mm
Length(with forks)×Width×Height 5400×1720×2650mm
Technical specifications
Fork Size(L×W×H) 1270×120×860mm
Gate Incline (front/rear) 6/12°
Max. Crawl Degree (full loading) 50
Max. Force of traction 2587Kgf
Max. Steering angle ±35°
Min. Turning Radius 4500mm
Min. Ground Clearance 260mm
Wheel Base 22100mm
Running Speed Advanced: I Shift/II Shift 15/20 Km/h
Rear: I Shift/II Shift 15/20 Km/h
Transmission Full power shift torque converter
Tire 20.5/70-16
Fuel tank capacity 86L
Service Braking Air assisted oil type disc brake on 4 wheels
Parking brake Manuel
Operation Weight 4800kg
Features

1. Euro III Xinchai 498 Engine, combined with the 220V engine preheater, runs steadily.

2. The adoption of four wheel drive and 20.5/70-16 large size tires makes it applicable to various working conditions.

3. The driver's cab is equipped with deluxe seat, LED working lamp, adjustable steering wheel, hydraulic operating lever and rear view camera to make the drivers’ operation simple and convenient.

Hongyuan Vehicle has been manufacturing super quality wheel loaders, is offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
