Metal Mesh Stamping Press
Request a Quote
Metal stamping machinery for producing perforated metal sheets and mesh products
Suitable for high-precision punching applications such as metal mesh, screen plates, and filter perforated plates. This High-Speed Press features exceptional rigidity and stability, enabling high-speed batch punching with uniform hole positioning and clean edges. It meets the stringent hole quality requirements of industries including filtration, electronics, and home appliances.

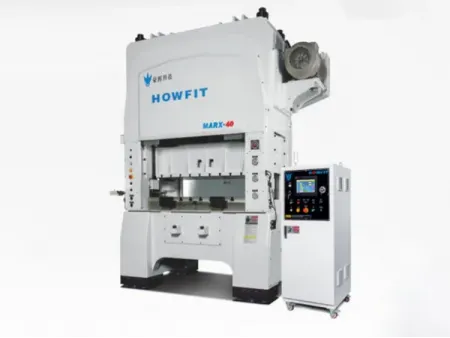

Straight Side Knuckle Joint Press (40 ton), MARX-40T
Samples of Stamped Parts
Technical Specifications
| Press capacity (kN) | 400 |
| Stroke (mm) | 16/20/25/30 |
| Stroke speed | 200-1250/200-1200/200-1050/200-900 strokes per minute |
| Shut height (mm) | 190-240 |
| Slide adjustment (mm) | 50 |

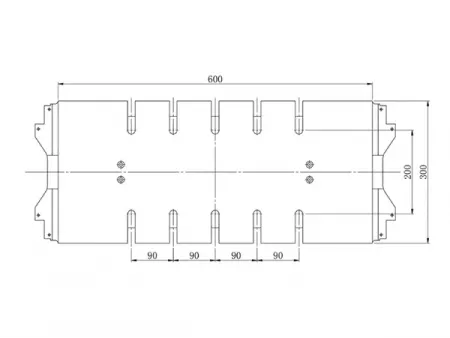

| Slide area (mm) | 600×300 |
| Worktable size (bolster) (mm) | 600×400 |
| Worktable thickness (mm) | 90 |
| Worktable opening (mm) | 400(upper)×350(lower)×60 |
| Bed opening (mm) | 400×100 |
| Motor (kW) | 11×4P |
| Upper die weight | max. 80kg |
| Total weight (kg) | 6500 |
| Dimensions (mm) | 1780×3075×1210 |
