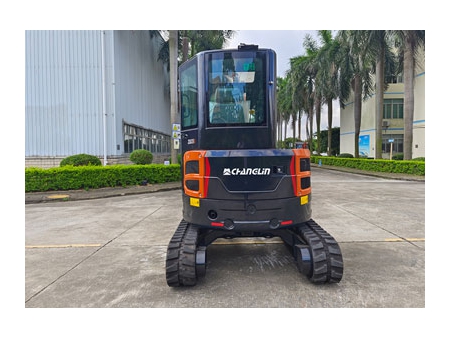

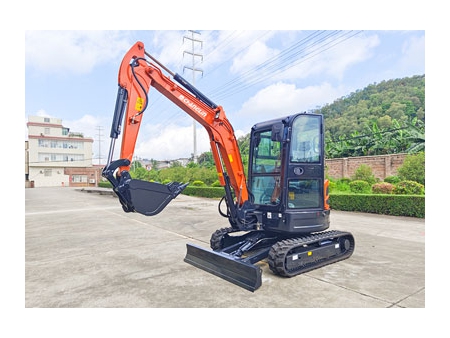

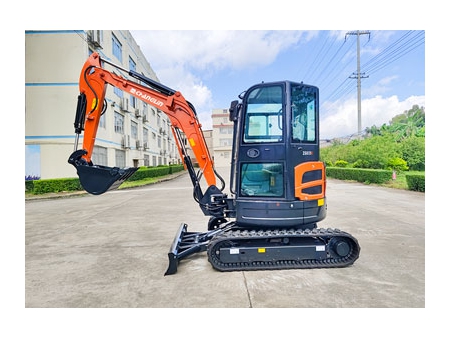

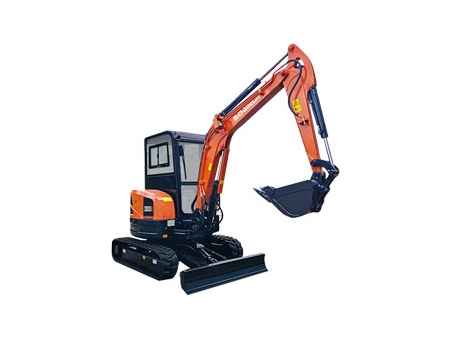

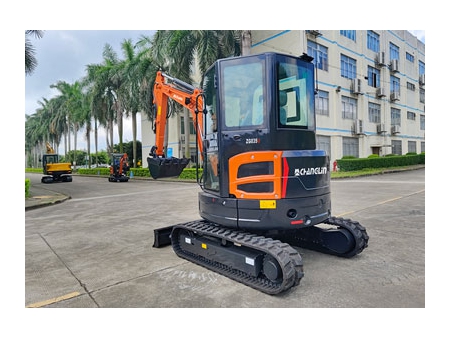

Mini Excavator ZG035U
Request a Quote
The ZG035U is equipped with a high-power Yanmar engine that meets Euro 5/Tier4F emission standards. It boasts coordinated movements, fast response, strong power, efficient operation, and energy-saving capabilities.
- Operating Weight 3,860KG
- Rated Power 18.2KW
- Bucket Capacity 0.12m³
| Model | ZG035U |
| Operating weight (Kg) | 3,860 |
| Rated bucket capacity (m3) | 0.12 |
| Overall length (mm) | 4,853 |
| Overall width (mm) | 1,800 |
| Overall height (mm) | 2,575 |
| Standard track shoe width (mm) | 300 |
| Travelling speed (Km/hr) | 3.1/4.8 |
| Swing speed (rpm) | 11-13 |
| Max. Gradeability (Degree) | 35 |
| Maximum digging radius (mm) | 5,557 |
| Maximum digging depth (mm) | 3,170 |
| Maximum digging height (mm) | 5,156 |
| Bucket digging force (kN) | 32.67 |
| Arm digging force (kN) | 25.78 |
| Engine model | Yanmar 3TNV88F |
| Rated power | 18.2kW/2,200rpm |
