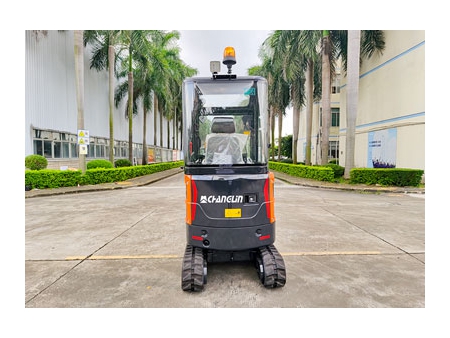

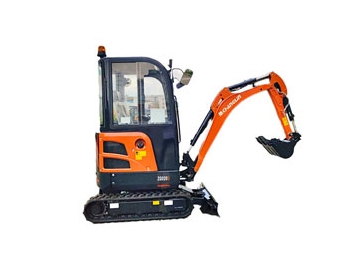

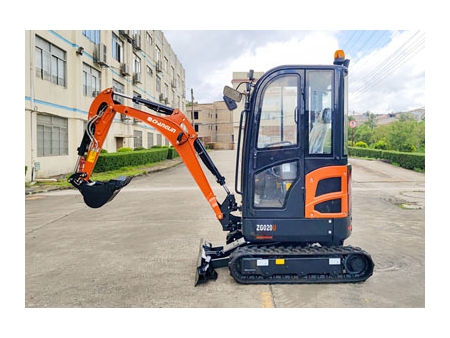

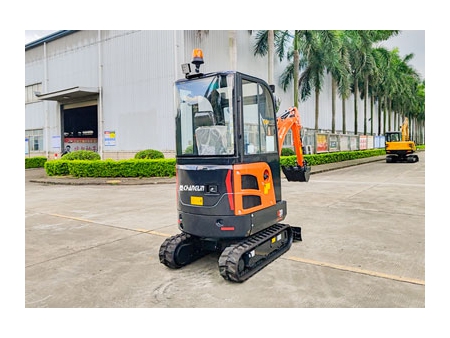

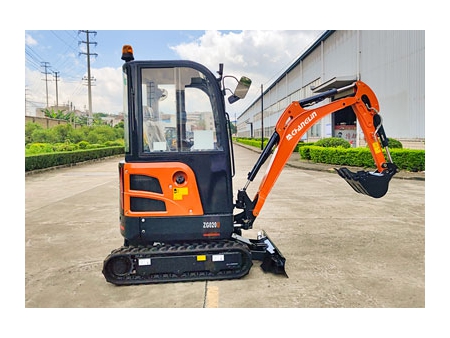

Mini Excavator ZG020U
Request a Quote
This ZG020U model is the smallest mini excavator with a cab, featuring a powerful Yanmar engine that meets Euro 5 and T4 emissions standards. It boasts fast and coordinated movements, as well as efficient operation.
- Operating Weight 2,000KG
- Rated Power 14.5/15.2KW
- Bucket Capacity 0.05m³
| Model | ZG020U |
| Operating weight (Kg) | 2,000 |
| Rated bucket capacity (m3) | 0.05 |
| Overall length (mm) | 3,750 |
| Overall width (mm) | 1,080 |
| Overall height (mm) | 2,365 |
| Standard track shoe width (mm) | 230 |
| Travelling speed (Km/hr) | 2/4 |
| Swing speed (rpm) | 11 |
| Max. gradeability (Degree) | 30 |
| Maximum digging radius (mm) | 4,125 |
| Maximum digging depth (mm) | 2,300 |
| Maximum digging height (mm) | 3,615 |
| Bucket digging force (kN) | 17.2 |
| Arm digging force (kN) | 9.5 |
| Engine model | Yanmar 3TNV76/ 3TNV80F |
| Rated power | 14.5kW/2,400rpm 15.2kW/2,500rpm |
