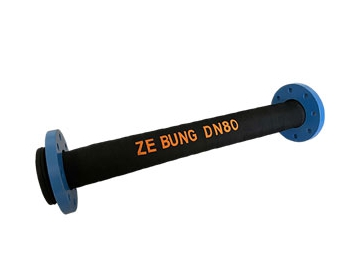

Phosphoric Acid Hose
Request a Quote
This hose features an inner rubber with excellent resistance to chemical corrosion and abrasion. Additionally, the joints are covered with rubber to prevent corrosion of metal joints, allowing for the long-term conveyance of phosphoric acid paste.
Basic Information- Inner tube: Chlorosulfonated polyethylene (tensile strength ≥14MPa)
- Reinforcement: Textile cord braided with helical steel wire
- Outer cover: Butyl chloroprene rubber compound (tensile strength ≥9MPa)
- Appearance: Smooth or corrugated surface
- Working temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Black
- Flange material and standards can be customized according to customer requirements.
Technical Parameters
| Item Code | Inner Diameter | Working Pressure | Burst Pressure | Max. Length | |||
| mm | inch | bar | psi | bar | psi | m | |
| PHSD102-300 | 102 | 4" | 20 | 300 | 60 | 900 | 12 |
| PHSD127-300 | 127 | 5" | 20 | 300 | 60 | 900 | 12 |
| PHSD152-300 | 152 | 6" | 20 | 300 | 60 | 900 | 12 |
| PHSD203-300 | 203 | 8" | 20 | 300 | 60 | 900 | 12 |
Note: Specifications, pressures ,etc. can be customized according to requirements.
