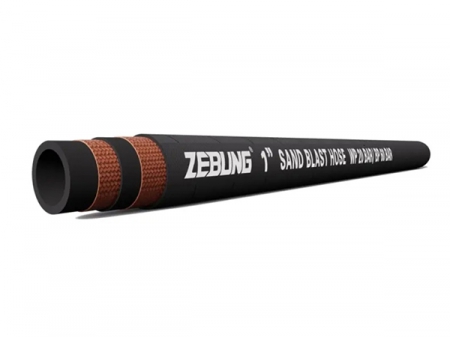

Sandblast Hose
The heavy-duty wear hose, also known as a sandblast hose, is meticulously crafted to facilitate the transfer of materials highly resistant to sand and other abrasive substances. Primarily tailored for usage in construction sites, shipyards, power plants, and similar environments, this rubber material handling hose boasts remarkable durability and reliability. Its versatile design allows for customization with different constructions, ensuring adaptability to a wide range of demanding applications.
Features
The sandblast hose exhibits outstanding abrasion resistance in its inner rubber layer, while its outer cover boasts high strength, ensuring reliable performance under diverse working conditions.
Applications

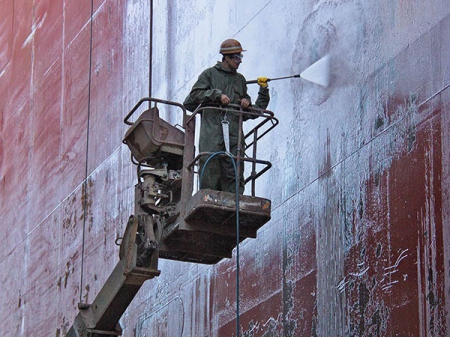

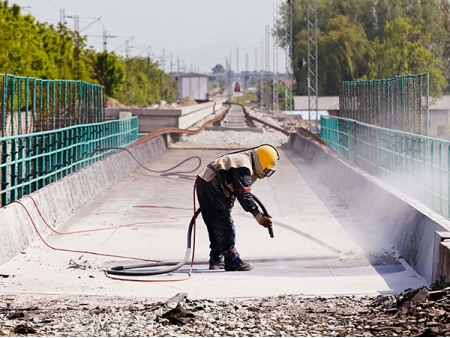

This hose is suitable for transporting small granular materials such as quartz sand and steel shot. It is used in abrasive conveying systems of sandblasting machinery and equipment to remove rust and old coatings from work piece surfaces, achieving surface cleaning and preparation for new coatings.
Construction
Tube: Synthetic and natural rubber blend resistant to abrasion
Reinforcement: High tensile textile cord with steel wire
Cover: Synthetic rubber resistant to ozone, weather and abrasion
1. Sandblast hose with braided reinforcement
- Inner tube: Natural rubber chloroprene rubber (tensile strength≥17MPa)
- Inner tube abrasion coefficient: ≤0.06
- Reinforcement: Single/double layer textile cord braided
- Outer cover: Natural rubber Styrene Butadiene rubber (tensile strength≥9MPa)
- Working temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Available in various colors such as black, green, etc.
Technical Parameters
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | kg/m | m | |
| SBDB006-300 | 6 | 1/4" | 18 | 20 | 300 | 60 | 900 | 0.28 | 100 |
| SBDB008-300 | 8 | 5/16" | 20 | 20 | 300 | 60 | 900 | 0.32 | 100 |
| SBDB010-300 | 10 | 3/8" | 22 | 20 | 300 | 60 | 900 | 0.38 | 100 |
| SBDB013-300 | 13 | 1/2" | 25 | 20 | 300 | 60 | 900 | 0.45 | 100 |
| SBDB016-300 | 16 | 5/8" | 28 | 20 | 300 | 60 | 900 | 0.51 | 100 |
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
2. Sandblast hose with spiral reinforcement
- Inner tube: Natural rubber Chloroprene rubber (Tensile strength ≥17MPa)
- Inner tube abrasion coefficient: ≤0.06
- Reinforcement: Textile cord wrapped
- Outer cover: Natural rubber Styrene Butadiene rubber (Tensile strength ≥9MPa)
- Working temperature: -20°C to 80°C
- Safety factor: 3:1
- Color: Available in various colors such as black, green, etc.
Technical Parameters
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Inner Rubber Thickness | Weight | Max. Length | |||
| mm | inch | mm | bar | psi | bar | psi | mm | kg/m | m | |
| SBD019-174 | 19 | 3/4" | 32.4 | 12 | 174 | 36 | 522 | 4 | 0.69 | 61 |
| SBD025-174 | 25 | 1" | 38.4 | 12 | 174 | 36 | 522 | 4 | 0.86 | 61 |
| SBD032-174 | 32 | 1-1/4" | 48 | 12 | 174 | 36 | 522 | 5 | 1.24 | 61 |
| SBD038-174 | 38 | 1-1/2" | 55 | 12 | 174 | 36 | 522 | 5 | 1.56 | 61 |
| SBD051-174 | 51 | 2" | 69.8 | 12 | 174 | 36 | 522 | 5 | 2.33 | 61 |
| SBD064-174 | 64 | 2-1/2" | 83.6 | 12 | 174 | 36 | 522 | 5 | 2.82 | 61 |
| SBD076-174 | 76 | 3" | 97.6 | 12 | 174 | 36 | 522 | 6 | 3.66 | 61 |
| SBD102-174 | 102 | 4" | 126.4 | 12 | 174 | 36 | 522 | 6 | 5.45 | 61 |
| TSBD019-174 | 19 | 3/4" | 40.4 | 12 | 174 | 36 | 522 | 8 | 1.27 | 61 |
| TSBD025-174 | 25 | 1" | 38.4 | 12 | 174 | 36 | 522 | 8 | 1.52 | 61 |
| TSBD032-174 | 32 | 1-1/4" | 48 | 12 | 174 | 36 | 522 | 8 | 1.82 | 61 |
| TSBD038-174 | 38 | 1-1/2" | 55 | 12 | 174 | 36 | 522 | 8 | 2.41 | 61 |
| TSBD051-174 | 51 | 2" | 69.8 | 12 | 174 | 36 | 522 | 8 | 3.04 | 61 |
Note: Specifications, pressures, colors, Inner rubber thickness，etc. can be customized according to requirements.
