Board Book Mounting and Gluing Machine, WT-007DBJ

Board Book Mounting and Gluing Machine, WT-007DBJ
Board Book Mounting and Gluing Machine, WT-007DBJ
Board Book Mounting and Gluing Machine, WT-007DBJ
Board Book Mounting and Gluing Machine, WT-007DBJ
Request a Quote

Board book mounting and gluing machine is an automatic book binding machine for children’s board books, it can accomplish book mounting and gluing in one step. This board book machine allows glue to be applied on full area or in section, giving an optimal binding result.

Samples
  • Children’s books
  • Lift-the-flap book
  • Jigsaw puzzle board book
Specifications
Power supply AC 380V/50 HZ Min. infeed sheet size 100*100mm
Total power 10KW Max. infeed sheet size 300*300mm
Air source 6 kg/cm2 Single sheet thickness 0.25mm-4mm
Air consumption Approx.150L/min Glue type Water-based adhesives
Dimension L15500*W1650*H1700MM Gluing Full area/sectional area
Weight Approx.3500KG Mounting General/special shaped
Operators needed 5 Productivity 3600sheets/H
Configurable 1/6/12 workstations
  • Productivity: 3600sheets/H
  • Single sheet thickness: 0.25mm~4mm
  • Max. Infeed sheet size: 300*300mm
  • Min. infeed sheet size: 100*100mm
  • Mounting: General/special shaped
  • Glue type: Water-based adhesives
  • Gluing: Full area/sectional area
  • Power supply: AC 380V/50 HZ
  • Total power: 10KW
  • Air source: 6 kg/cm2
  • Air consumption: Approx.150L/min
  • Dimension: L15500*W1650*H1700MM
  • Weight: Approx.3500KG
  • Operators needed: 5
  • Configurable: 1/6/12 workstations
Features

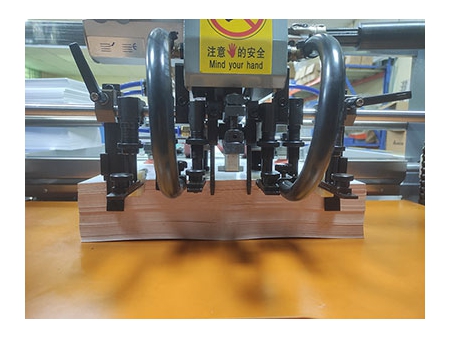

    1. Sheet feeding unit

      Board pages are stacked and placed in the magazine, stable sheet feeding is guaranteed through corresponding size adjustment;

    1. Gluing unit

      Standard glue application structure, the position is adjustable according to individual page size;

    1. Belt conveying unit

      Servo motor driven belt transfers individual sheets, providing precise positioning and flexible speed control;

    1. Book page pressing unit

      Every single page is tightly pressed after gluing, ensure a great book binding result;
