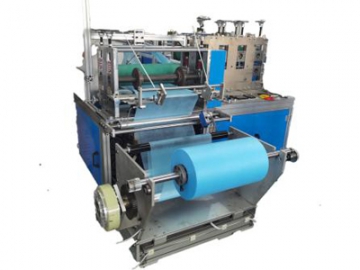

Non-Woven Shoe Cover Making Machine
Request a Quote
Our non-woven shoe cover making machine is capable of manufacturing 160 non-woven shoe covers every minute. The shoe cover production process is fully automated throughout from feeding, folding to counting, completely eliminating manual operation and greatly saving labor cost.
Features
- PC control and automatic tension control;
- Ultrasonic welding system;
- Fully automatic production, only one operator is required for the entire process;
- Automatic temperature control;
- Frequency conversion speed regulation;
Production process
Feeding → Folding → Welding → Cutting
Technical Data
| Suitable Material | Non-woven |
| Machine Size | 1900mm*1800mm*1600mm(L*W*H) |
| Package Size | 1900mm*1800mm*1600mm(L*W*H) |
| Capacity | 120-160 Pcs/min |
| Voltage | 220v/380v (according to customer requirements) |
| Weight | Machine weight: 750kg; Packing weight: 800kg; |
| Power | 5.8kw |
| Finished Products Size | 400*160mm (L*W) Other sizes are available according to customer requirements |
| Material Feeding | Rubber band, Non-woven |
Gallery

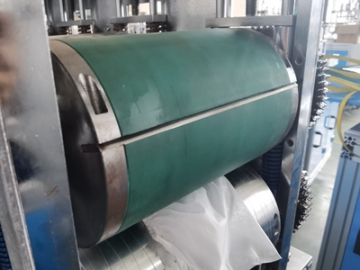

- Material feeding

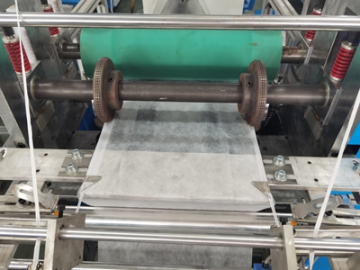

- Rubber band feeding

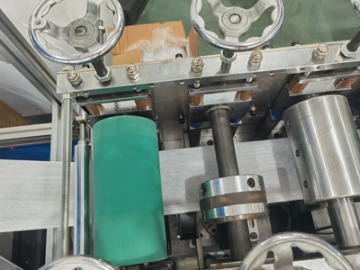

- Ultrasonic welding

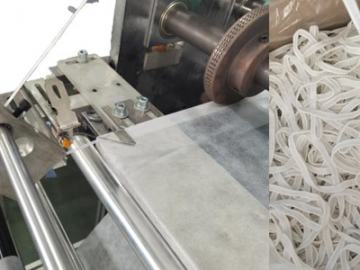

- Side sealing by ultrasonic
- Cutting unit

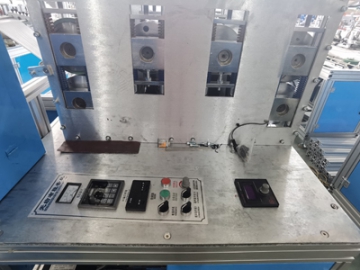

- Control panel
