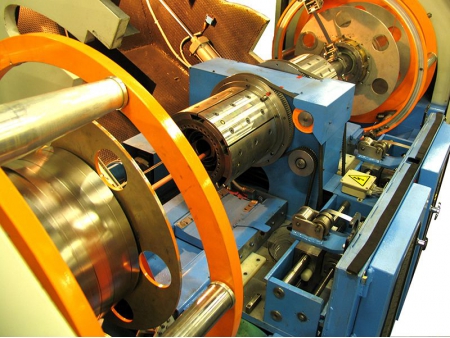

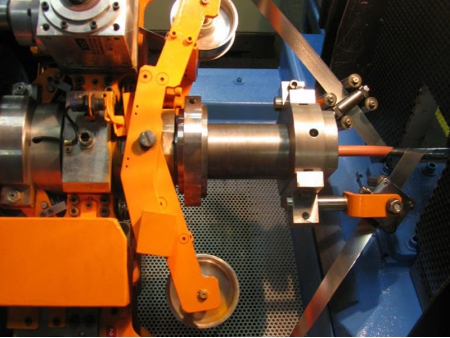

Concentric Steel Taping Machine, CS Series

Concentric Steel Taping Machine, CS Series
Concentric Steel Taping Machine, CS Series
Concentric Steel Taping Machine, CS Series
Request a Quote

Discover our high-efficiency concentric steel taping machines, designed specifically for cable armoring.

With its compact design, uninterrupted operation, and user-friendly control system, our taping machine ensures reliable and precise taping for wire and cable manufacturing. Explore the features of our concentric steel taping machine, including a large steel strip storage, single drum continuous armoring, rewind function, and easy and fast reloading.

Features
  • Concentric Structure: Our taping machine utilizes a concentric structure, minimizing centrifugal force. The steel tape drum is driven by an AC servo motor, delivering high torque, precision, and short braking distance.
  • Tension Control: The tension of the tape is controlled by an AC servo motor, ensuring stable and adjustable taping tension.
  • Independent Arm Drive: The taping heads have independent drives, allowing for easy adjustment of taping angles.
  • Electrical Synchronization Control: The taping machine incorporates a touch panel, PLC, and AC servo control system. The touch panel displays and allows the setting of various parameters. The PLC controls taping speed and pitch accuracy through real-time feedback from encoders, ensuring precise pitch within the set range.
  • Maximum Speed: Our taping machine can achieve speeds of up to 1000 revolutions per minute (RPM), depending on the product.
Specifications
Shaft diameter 670 mm
Shaft width 300 mm
Strip Material steel, copper
Strip width 10 to 40 mm
Strip thickness strip thickness: 0.25 -0.40 mm, steel
strip thickness: 0.10 -0.50 mm, copper
Maximum weight of the shaft 600kg
Drive Motor 22 kW
Rotating speed 600 rpm
Pitch stepless adjustable
