  • Large size thick-walled reducer
  • Small size seamless reducer
Description

Stainless steel reducer pipe fittings are usually applied to connect two pipes with different diameters in pipe systems. Our company provides both concentric and eccentric reducers, which are all available with various specifications.

Common stainless steel features great resistance to corrosion, high temperature and acid, thus ensuring that our stainless steel reducer is suitable for conveying varieties of corrosive fluid and also could work smoothly in circumstance with high temperature and high pressure.

Sample Exhibition 1. Large size stainless steel reducer

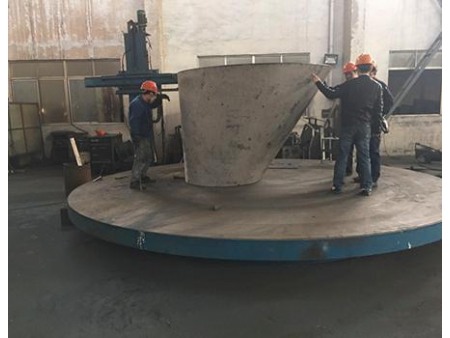

For production of large size stainless steel reducer, two steel plates are placed into corresponding mould for compression molding first by hydraulic press. Then butt welding will be done to attach these two steel pieces together. Through this exact process, the maximum caliber of the seamed stainless steel reducer we could produce reaches 100 inches.

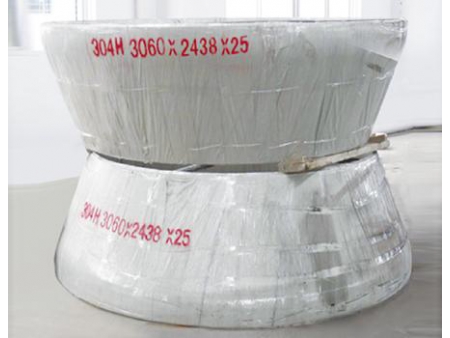

  • Large size concentric reducer
  • Welding eccentric reducer
2. Seamless stainless steel reducer

With the whole set of pipe forming moulds with all kinds of dimensions and rich production experience, we are fully capable of implementing cold pressing forming by mold or hot press forming by mandrel to produce seamless stainless steel reducer with varieties of specifications.

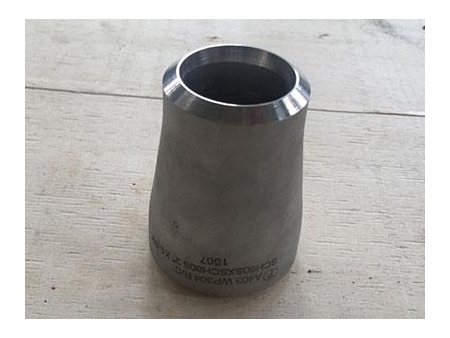

  • Seamless concentric reducer
3. Forged stainless steel reducer

Through forging process, we are also able to manufacture stainless steel socket weld reducer or threaded reducer.

Recommended Applications

An extensive use of stainless steel fittings can be found in the following industries:

  • Petrochemical industry: Oil refining, ethylene, coal to oil, coal to olefins and other projects.
  • Natural gas industry: LNG ships, LNG terminals, and natural gas pipeline projects.
  • Power station industry: In thermal power plant, the water pipeline (usually stainless steel) used for supercritical units, circulating fluidized beds, power generation boilers, steam turbines, generators and other equipment, including reheater tube, superheater tube, water screen tube, economizer tube, downcomer and header, etc.
  • Machinery and equipment manufacturing industry: Equipment structures such as pressure vessel, heat exchanger, fluid control, hydraulic transmission, instrumentation and others.
  • Others: Shipbuilding, papermaking, desalination, food production and other industries; Aviation, aerospace, military, nuclear power plants and other projects.
Custom Range
Parameters DN15-DN2500 (1/2"-100")
Wall thickness Conventional wall thickness range: Sch 5s to Sch XXS
Maximum wall thickness: 120mm
Standard ASME B16.9, MSS-SP-75, DIN2616, DIN2617, JIS B2312, JIS B2313, DIN EN10253, GB/T12459, GB/T13401, GB/T25198, GB/T27684, SH3408, SH3409, GOST17378, etc.
