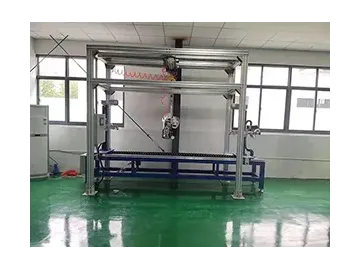

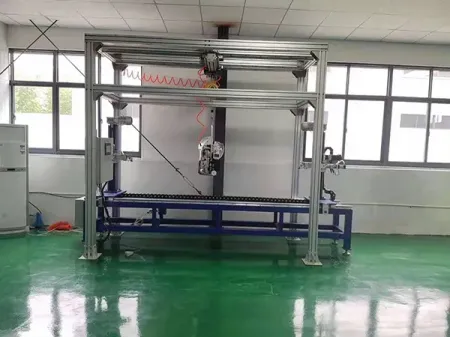

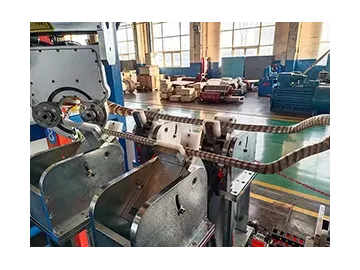

Coil Taping Machine
Coil taping machine has a split structure, consisting of fixed bed and moving bed. It is suitable for automatic wrapping of magnetic field coils of motor stator with insulation tapes, especially for large and medium-sized coils, such as diamond-shaped stator coils or coils with large cross-section. Coil taping machine operates in both continuous and single-step mode and is therefore suitable for both small batch and mass production. In addition, this coil processing machine features unique functions of shaping and centering compared to conventional coil taping machines, which results in good straight sides and symmetrical edges. During the process, the coil taping machine does not cause any mechanical damage to the coils, and the insulation between the turns of the coils is intact, so that the electrical performance of the coils can be guaranteed.
- Except for loading and unloading pre-wound coils, all processes are fully automated.
- The working pressure and stroke of coil taping machine can be adjusted within the specified range according to your needs.
- The working table is pushed and pulled by a leadscrew, which is convenient for loading and unloading with accurate positioning and reliable press fitting.
- CNC coil taping machine adopts servo motor to control stacking rate and coil angle. It has a wide range of applications and can wrap all types of stator coils.
- The clamp adopts pneumatic cylinder regulating valve to ensure the accurate positioning of the work station.
- The head is driven by servo motor and ball screw, which makes the positioning more accurate.
- The evolute angle can be self-adjusted with great automation and simple operation.
- During the coil taping process, the parameters are programmed by microcomputer, which makes the operation more convenient.
- ① Load the workpiece and fix it with clamps;
- ② Set the production and pick-up time (settable);
- ③ Start the automatic mode, the lower side clamp acts to fasten the coil and moves to the setting area, the upper clamp acts to fasten the coil;
- ④ Analog coil video;
- ⑤ Pre-wrapping of insulation tape;
- ⑥ Automatic wrapping of insulation tape;
- ⑦ Collect finished coils;
- ⑧ Machine reset;
| Coil slot straight length | 450-2500mm |
| Overall coil length | 750-3500mm |
| Coil width | 260-1050mm |
| Lift | 0-400mm |
| Evolute angle | 0-30° |
| Maximum angle between upper coil and centerline | 60° |
| Maximum angle between lower coil and centerline | 60° |
