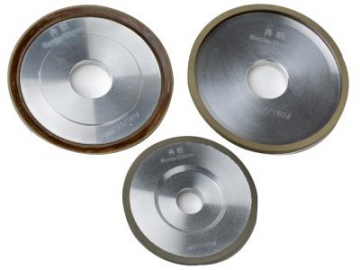

Grinding Wheel for Alloy Cutter
Request a Quote
The grinding wheel for alloy cutters is specifically used for circular grinding and surface grinding on different alloy cutters with an extraordinary efficiency and glossy finish.
Technical Parameters:| SHAPE/CODE | DIAMETER (D) | OVERALL THICKMESS (T) | EFFECTIVE GRINDING WIDTH (K) | EFFECTIVE GRINDING THICKNESS (X) | INCLINED ANGLE (V) |
| Single-sided parallel strengthen wheel/3A1 | 75,100,125,150,180,200 | 4,5,6,8,10 | 3,5 | ||
| Cup wheel/11V9 | 80 | 27 | 5,10,15,20 | 3 | - |
| 100 | 40 | 5,10,15,20 | - | 60° | |
| 125 | 40,45 | 5,10,15,20 | - | - | |
| 150 | 40,45 | 5,10,15,20,25 | - | - | |
| Parallel angle wheel/1V1 | 80 | 30 | 3-10 | 3,5,8,10 | 10°,15°,20° |
| 100 | |||||
| 125 | |||||
| 150 | |||||
| Cup wheel/11A2 | 50 | 38 | 5 | 2.5 | |
| 75 | 10 | ||||
| 100 | 10 | ||||
| 125 | 10 | ||||
| 150 |
Remark: Other specs are available upon request.

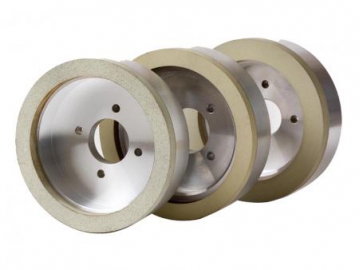

Related products
