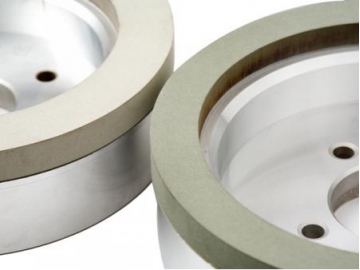

Grinding Wheel for PCD Cutter, PCBN Cutter
Request a Quote
This grinding wheel type is specially designed for PCD (polycrystalline diamond) and PCBN (polycrystalline cubic boron nitride) processing due to the extraordinary hardness and accuracy requirements. This grinding wheel features a high processing efficiency, a low thermal expansion rate due to a low heat dissipation, and will not cause any blockages during operation.
Technical Parameters:| OUTER DIAMETER (D) | OVERALL THICKNESS (T) | METAL THICKNESS (E) | EFFECTIVE GRINDING WIDTH (K) | EFFECTIVE GRINDING THICKNESS (X) |
| 80 | 40 | 10 | 5,10,15 | 5,10 |
| 100 | 10 | 5,10,15 | ||
| 125 | 10 | 5,10,15 | ||
| 150 | 12 | 5,10,15 | ||
| 180 | 12 | 5,10,15 | ||
| 200 | 12 | 5,10,15,20,25 |
Remark: Other specs are available upon request.
