Injection Adhesive Conical Anchor
Chemical Anchors
Conical stud with injection anchoring adhesive

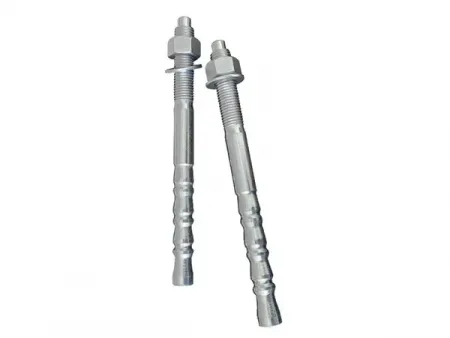

Our conical chemical anchor system consists of a flat washer, nut, and specially designed conical stud, engineered for use with anchoring adhesive. This combination delivers optimal anchoring performance, and smaller sizes can also be used with glass capsule adhesives. The stud is made from chrome-alloyed steel for enhanced toughness and high tensile strength.

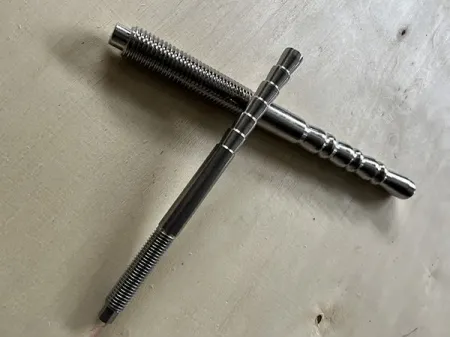

Unlike standard threaded rods, this chemical anchor utilizes a tapered cone shape to improve mechanical interlock. While chemical anchoring relies on the bonding action between adhesive, steel, and concrete, the conical geometry adds a mechanical keying effect similar to that found in mechanical anchors. This significantly improves load transfer efficiency and anchorage reliability, even under extreme stress. In failure scenarios, the anchor encourages a controlled concrete cone failure mode, enhancing structural safety.
Commonly used in reinforced concrete structures, bridges, and other load-bearing applications

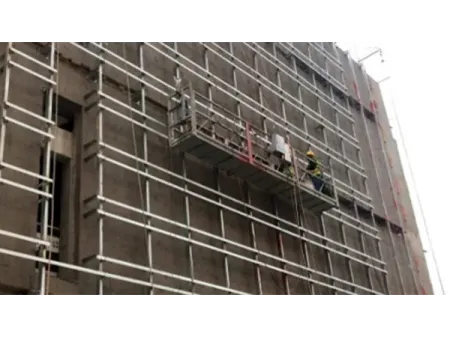

- Fixing of curtain wall brackets and subframes
- Steel plate bonding and reinforcement
- Load anchoring in steel structures
- Equipment and conveyor system anchoring
- Stair anchoring and cover plate connections
- Rail transit, road, and bridge infrastructure
- Installation of crash barriers and sound insulation walls
- Seismic bracing system installations
- Suitable for pre-engineered anchoring in cracked concrete, offering reliable mechanical-chemical bonding
- Used in combination with Grade A anchoring adhesive, resistant to high and low temperatures, and proven to withstand moisture and thermal aging
- Injection-based installation eliminates risks of uneven mixing, ensuring consistent performance
- Underwater adhesive variants enable effective anchoring even in water-filled or damp drill holes
- Fire Resistance Report (120 minutes)
- Seismic Resistance Report
- Fatigue Resistance Report (2 million cycles)
- Corrosion Protection Salt Spray Test Report
- Anchoring Adhesive Safety Certification Report
