Injection Adhesive Threaded Rod Anchor
Chemical Anchors

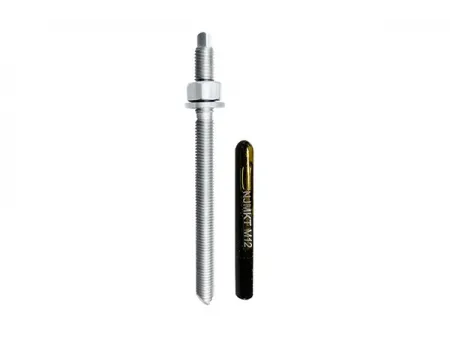

Threaded stud with injection anchoring adhesive
When secure and reliable anchoring is required in challenging concrete applications, the injection adhesive threaded rod anchors offer an effective solution. By combining a high-strength threaded stud with specialized injection adhesive, this anchoring system ensures solid, long-lasting bonding in a variety of structural conditions. The threaded stud consists of a washer, nut, and rod, fully compliant with threading standards and tested for precise fit and performance.
Suitable for enhancing the strength and stability of concrete structures, including buildings, bridges, and various industrial installations.

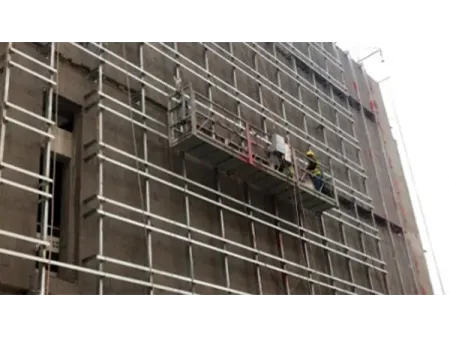

- Facade reinforcement

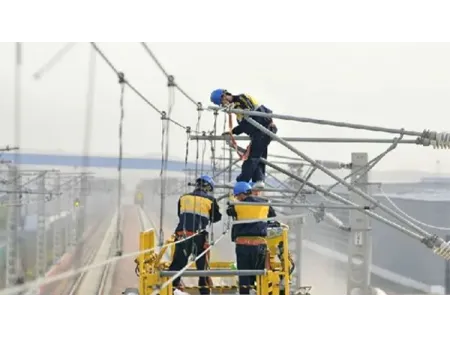

- Anchoring of overhead contact line supports and evacuation platforms
- Load anchoring for steel structures
- Reinforcement for machinery, conveyor systems, and storage facilities
- Reinforcement of grouted cover plates
- Railway transit, bridges, and concrete prestressing
- Noise barriers and acoustic walls
- Reinforcement of concrete layers and structural joints
- Suitable for depths between 4 to 20 times the rod diameter (d), with anchorage depths exceeding 40 mm, making it ideal for installations with small edge distances and tight spacing.
- When paired with MT-500 injection adhesive, it excels in anchoring cracked concrete in seismic regions.
- Provides superior adhesive bonding, ensuring reliable performance for large steel bars and rods, with results similar to embedded systems.
Our chemical anchors are tested to ensure their reliability and durability in a wide range of demanding environments. The following reports certify their performance and compliance with industry standards:
- Fire Resistance Report (120 minutes)
- Seismic Resistance Report
- Fatigue Resistance Report (2 million cycles)
- Corrosion Protection Salt Spray Test Report
- Anchoring Adhesive Safety Certification Report
