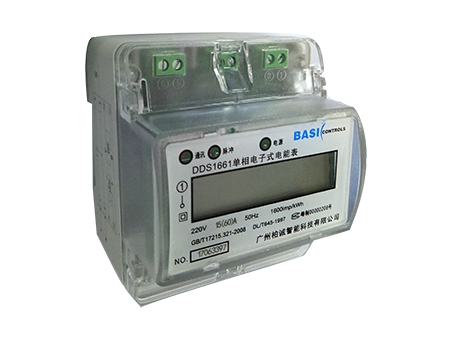

The DIN rail single phase energy meter with cut off function (4P) is an improved version of the DIN rail single phase energy meter (4P). It renders the measurement of total active energy, remote cut-off and the reading of the gate status.
Technical parameters| Voltage | 220V |
| Ambient humidity | 75% |
| interface | RS485 |
| Communication protocol | MODBUS-RTU, DL/T645 |
| Frequency | 50Hz |
| Outline dimension | 89mm×75mm×72mm |
| Recommended installation height | Over 1.8m |
| Class | 1.0 class |
| Storage temperature | -10～ 45℃ |
| Standard | -25～ 70℃ |
| Max. working temperature range | -25～ 55℃ |
| Current circuit power consumption | 1.0W 5VA |
| Min. Service life | 10 years |
| External current specifications | 1.5(6)A-connecting to CT |
| Internal current specifications | 10(40)A、15(60)A、20(80)A |
Outer dimension
