7-FRSpec
Used to measure fluorescence intensity

The performance of our fluorescence measurement system is typically assessed using the signal-to-noise ratio of pure water Raman. When tested using modulation methods, the Raman spectra of pure water are displayed as follows. Equipped with specialized fluorescence testing software, our system can measure excitation spectra, emission spectra, and synchronous spectra with precision and ease.

Specifications
Spectral range 200~2500nm (selectable according to actual needs)
Excitation light source Xenon lamp (other types of light sources can also be selected as needed)
Photocurrent drift < 0.04% per hour
Wavelength accuracy ±0.2nm
Spectral resolution ±0.1nm
Spectral bandwidth Adjustable from 0.2~10nm
Signal-to-noise ratio ≥2000:1 (pure water Raman)
Features
  • Utilizes high-sensitivity photomultiplier tubes and indium gallium arsenide detectors for enhanced sensitivity.
  • Enhanced system signal-to-noise ratio with the integration of optical choppers and photon counters.
  • It’s capable of conducting excitation spectrum, emission spectrum, and synchronous spectrum tests.
  • Automatic removal of significant errors ensures precise test results.
  • Modular design for flexible structure and easy upgrades.

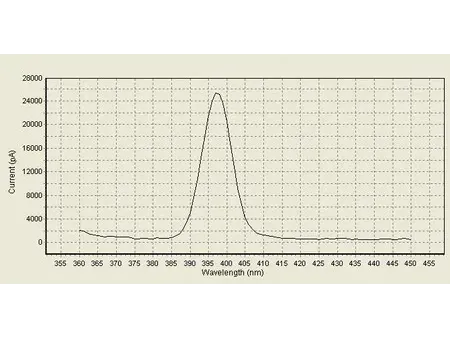

Raman spectra of pure water measured in real time (λex=350nm, λem=397nm, half width < 10nm, signal to noise ratio exceeds 1000:1)

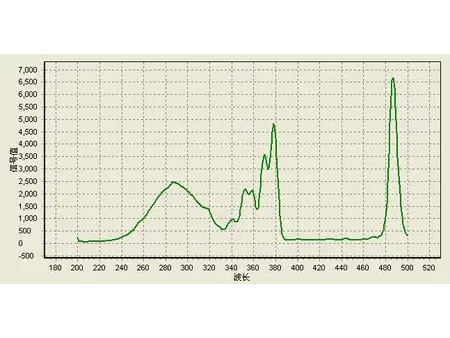

3 measured in real time'> The excitation spectra of rare-earth compound Tb3 measured in real time
