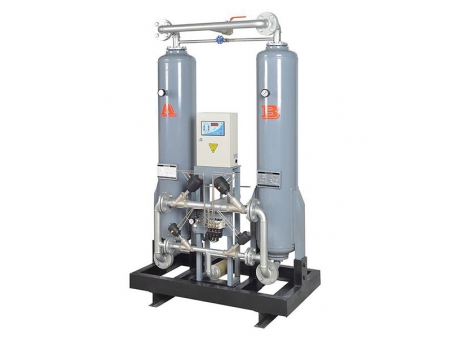

Heated Desiccant Air Dryer
Heated desiccant air dryer removes moisture from compressed air to achieve dew point as low as -70℃. It performs desiccant regeneration process by reducing the pressure in the tower and passing purge air through the desiccant bed, thus minimizing the required volume of dry compressed air for higher efficiency of energy saving. The heat regenerated adsorption dryer requires only 6% dry purge air to distribute the heat throughout the desiccant bed, offering significant reduction of operating costs. Besides, this heated desiccant air dryer eliminates the use of external energy, this helps further reduce the investment costs for enterprises.
- Request a quote
- Applications
- Features
- Specifications
- Gallery
Heated desiccant air dryer is extensively applied to mass production of precision electronics, integrated circuit chips, high-tech polymer materials, and more applications in food and pharmaceutical industries.
- Purge air consumption (for regeneration): ≤4%-6%
- Desiccant: activated alumina, molecular sieve
- Working pressure: 6-10bar
- Working time: T=4-180min
- Intake oil content: ≤0.01ppm
- Inlet temperature: 0℃-45℃
- Pressure dew point: -20℃ to -70℃
- Reduced wear and tear on components, resulting in a longer service life of your equipment;
- Less failure rate, providing higher productivity and lower maintenance cost;
- Multi-port inlet and outlet, ensuring easy and quick connection to the air system;
- Higher quality of final products;
- Increased reliability with minimal leak risk;
- Low pressure drop, better energy efficiency;
- Pressure dew point sensor;
Model | Capacity | Power | Voltage | Connection | Dimension | Weight |
m3/min | kW | V/50Hz | L×W×H | Kg | ||
HDR-10HXF | 1.2 | 0.85 | 380 | ZG1″ | 800×400×1360 | 120 |
HDR-20HXF | 2.4 | 1.0 | 380 | ZG1″ | 800×400×1460 | 180 |
HDR-30HXF | 3.8 | 1.25 | 380 | ZG1.5″ | 1000×450×1600 | 270 |
HDR-60HXF | 6.5 | 1.5 | 380 | ZG1.5″ | 1200×500×1950 | 400 |
HDR-75HXF | 8.5 | 1.8 | 380 | ZG1.5″″ | 1400×600×2000 | 510 |
HDR-100HXF | 10.7 | 2.5 | 380 | ZG2″ | 1400×600×2090 | 700 |
HDR-150HXF | 13.5 | 2.5 | 380 | ZG2″ | 1400×600×2140 | 740 |
HDR-200HXF | 18 | 3.0 | 380 | DN65 | 1400×600×2200 | 780 |
HDR-250HXF | 25 | 4.0 | 380 | DN80 | 1670×650×2435 | 1180 |
HDR-300HXF | 35 | 6.5 | 380 | DN100 | 1670×650×2566 | 1760 |
HDR-350HXF | 45 | 8.8 | 380 | DN100 | 1750×750×2700 | 2200 |
HDR-400HXF | 55 | 10.2 | 380 | DN125 | 1800×750×2755 | 2600 |
HDR-450HXF | 65 | 13 | 380 | DN125 | 1900×700×3070 | 3100 |
HDR-500HXF | 85 | 13 | 380 | DN150 | 2620×1120×3070 | 4100 |
HDR-550HXF | 110 | 13 | 380 | DN150 | 3100×1650×3200 | 5200 |
HDR-600HXF | 160 | 13 | 380 | DN200 | 3240×1770×3190 | 6000 |
