MSA EDFA Module - Compact and Flexible Amplification for Diverse Applications
MSA EDFA is a miniaturized full-functional EDFA with built-in control circuit. Its excellent optical performance, flexible working mode and concise interface supports the full C-band amplification. It is suitable for all kinds of compact single board installation.
Features
- Excellent NF performance
- Excellent gain ripple and gain tilt
- Fast transient suppression
- Compact size
- Compliance with Telcordia GR-1312-CORE
Applications
- Metro network
- DCI

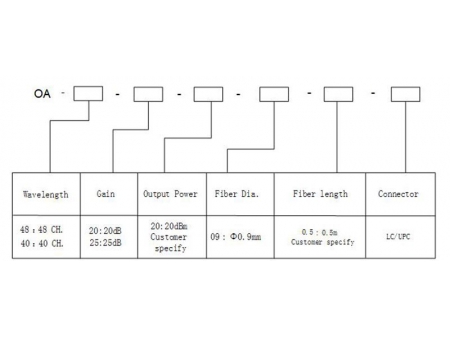

Ordering information
Key Parameters
| Parameter | Min. | Typ. | Max. | Units |
| Wavelength range | 1528 | 1568 | nm | |
| Input Power Range | -30 | 0 | 2 | dBm |
| Output Power Range | 20.5 | dBm | ||
| Gain Flatness@ Gain=20dB | 0.8 | 1.5 | dB | |
| Noise Figure@ Gain=20dB | 6 | dB | ||
| Output Power Control Resolution | 0.5 | dB | ||
| Input/Output Return loss | 40 | dB | ||
| PMD | 0.3 | Ps | ||
| PDG | 0.3 | dB | ||
| Module Size | (W×L×H)90×70×14.5 | mm | ||
| Fiber Type | Ф0.9 mm tight buffer | |||
Note: Customized design can also be provided.
