MEMS 1xN Multimode Optical Switch
Request a Quote
Cylindrical (1×2 to 1×16)
Introducing the Cylindrical (1×2 to 1×16) MEMS 1xN multimode optical switch, a device for optical communication and fiber sensing applications. This optical switch, leveraging the power of Micro-Electro-Mechanical System (MEMS) technology, provides channel selection capabilities between a single input fiber and up to 16 output fibers. Its cylindrical design and versatile port configurations ranging from 1×2 to 1×16 make it a versatile solution for various optical network needs.
Features
- Proven MEMS durability and reliability
- Compact form factor
- Fast switching time
- Qualified to Telcordia GR-1073-CORE and RoHS requirements
Applications
- Fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Fiber sensing
- Resource sharing
- Optical network protection and restoration

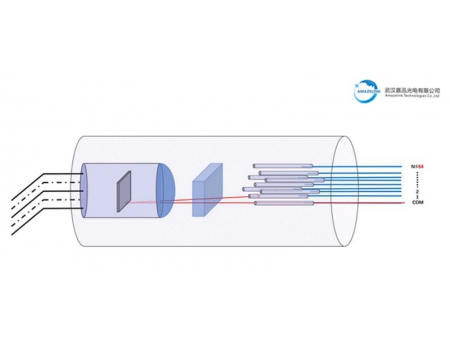

Schematic Diagram
Optical Specifications
| PARAMETER | UNIT | VALUE | |
| Wavelength | nm | 8:850 only 9:980 only 13:1290 ~ 1330 15:1525 ~ 1568 | |
| Test Wavelength | nm | 850 / 980 / 1310 / 1550 | |
| Insertion Loss | 1 x 2 / 4 / 8 | dB | ≤ 1.0, typical 0.6 |
| 1 x 12 / 16 | ≤ 1.2, typical 0.8 | ||
| 1 x 24 | ≤ 1.4, typical 1.0 | ||
| Return Loss | dB | ≥ 30 | |
| Repeatability | dB | ≤ 0.1 | |
| Crosstalk | dB | ≥ 30 | |
| PDL | dB | ≤ 0.2 | |
| WDL | dB | ≤ 0.4 | |
| TDL | dB | ≤ 0.3 | |
| Switch Time | ms | ≤ 5 | |
| Durability | cycle | ≥ 1 x 109 | |
| Maximum Optical Power | mW | ≤ 500 | |
| Latching Type | Non-latching | ||
