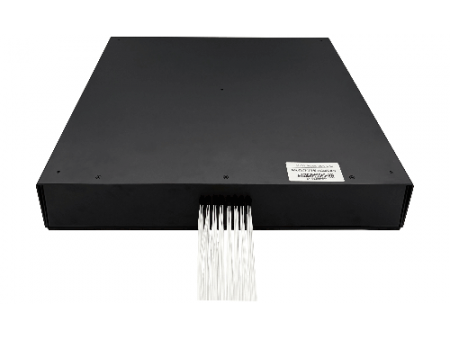

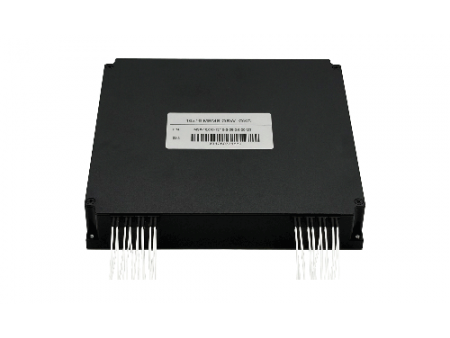

MEMS MxN Optical Cross-Connects, Single Mode

Request a Quote

Website: http://fiberoptic-switch.com/2-2-mems-optical-cross-connects-single-mode.html

Matrix Optical Switch with Single Mode Fiber

Enhance Optical Network Flexibility with MEMS MxN Single Mode Optical Cross-Connects

MEMS MxN single mode optical cross-connects play a crucial role in optical networks that require signal switching between different paths. These switches are designed to route signals among multiple input and output fibers, providing greater flexibility in optical network designs. Another advantage of our MEMS MxN single mode optical cross-connects is their scalability. They can easily expand to accommodate larger networks and can be configured to meet specific requirements for different applications.

Schematic Diagram

Optical Specifications

PARAMETER		UNIT	VALUE
Wavelength		nm	13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650
Test Wavelength		nm	1310 / 1550 / 1625 or 1650
MxN			16 x 16 / 32 x 32 / 64 x 64
Insertion Loss	4 x 4	dB	≤ 1.6, typical 1.4
	8 x 8		≤ 1.8, typical 1.6
	16 x 16		≤ 2.2, typical 2.0
	24 x 24		≤ 2.4, typical 2.2
	32 x 32		≤ 2.6, typical 2.4
	48 x 48		≤ 2.8, typical 2.6
	64 x 64		≤ 3.0, typical 2.6
Return Loss		dB	≥ 45
Repeatability		dB	≤ 0.1
Crosstalk		dB	≥ 50
PDL		dB	≤ 0.35
WDL	16 x 16	dB	≤ 0.6
	64 x 64		≤ 0.8
TDL		dB	≤ 0.6
Switch Time	16 x 16	ms	≤ 5
	64 x 64		≤ 10
Durability		cycle	≥ 1 x 10⁹
Maximum Optical Power		mW	≤ 500
Latching Type			Non-latching
