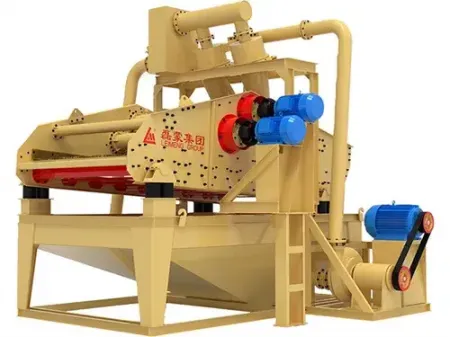

Sand Washing Plant Fine Sand Recycler
Existing sand washing production lines traditionally use a wet production process, which often leads to a significant fine sand loss, which also decreases the quality of the sand washing machine and increases environmental pollution. In order to solve those issues, we designed a fine sand recycler according to practical situations for fine sand. This equipment uses a semi-closure design to discharge waste, as well as carry out flexible, repeated, and reasonable sand recycling, with a recovery rate of up to 90%.
The fine sand recycler will extract fine sand(0.075-0.35) in the waste water to ensure the sand reaches the optimal grading distribution. Thus, it earns customers a larger profit, and decreases pressure of waste water processing in the following:
ParameterModel | Pump | Dewatering screen | Processing amount | Weight | ||
Power (kw ) | Size (mm) | Size (mm) | Power (kw ) | (t/h) | (t) | |
HB1200*3000 | 37 | 4600*2200*4450 | 3000*1450*1438 | 6 | 100-187 | 4.5 |
HB1500*3000 | 45 | 4600*2450*4450 | 3000*1680*1438 | 7.4 | 100-312 | 5.2 |
HC500*100 | 75 | 5580*2280*4380 | 2950*1410*1350 | 7.4 | 400-500 | 9.1 |
HC800*200 | 120 | 7400*3500*4385 | 3395*1950*1550 | 10 | 700-800 | 12.5 |
