ZKX Series Fine Sand Recycling Machine

Request a Quote

Website: http://stonecrusher-en.com/fine-sand-recycling-machine-5-4.html

The fine sand recycling machine is widely used in slurry purification, aggregate systems for hydropower projects, glass raw material processing systems, manufactured sand production lines, and recovery of coarse coal slime in coal preparation plants. It is also applied in environmental protection projects, shield tunneling slurry purification, and dry tailings discharge treatment in metal and non-metal mineral processing plants.

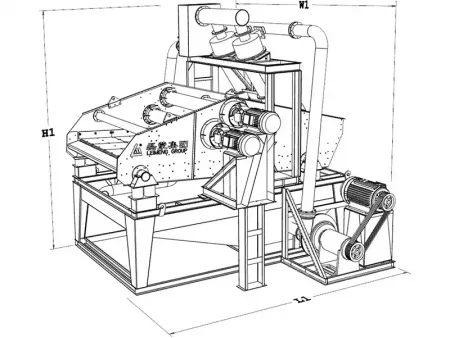

Dimensions

Model	Length L1 (mm)	Width W1 (mm)	Height H1 (mm)
ZKX1845-B2A	5105	4305	4890
ZKX2045-B2A	5105	4505	4890
ZKX2245-B2A	5105	4705	5035
ZKX2445-B2A	5105	4905	5035
ZKX2045-D2C	5105	4505	4890
ZKX2245-D2C	5105	4705	4890
ZKX2445-D2C	5105	4905	4890
ZKX2460-B4C	6605	4505	4890
ZKX3053-D2C	5905	5505	4890

Technical Parameters

Model	Dewatering screen		Cyclone	Slurry pump		Capacity (t/h)
	Screen size (mm)	Power (kW)		Throughput (m³/h)	Power (kW)
ZKX1845-B2A	1800×4500	11kW-6×2	350#X2	200	37kW-6	96-128
ZKX2045-B2A	2000×4500	15kW-6×2	350#X2	200	37kW-6	120-160
ZKX2245-B2A	2200×4500	15kW-6×2	350#X2	200	37kW-6	144-192
ZKX2445-B2A	2400×4500	18.5kW-6×2	350#X2	200	37kW-6	152-208
ZKX2045-D2C	2000×4500	15kW-6×2	500#X2	400	55kW-6	112-160
ZKX2245-D2C	2200×4500	15kW-6×2	500#X2	400	55kW-6	144-192
ZKX2445-D2C	2400×4500	18.5kw-6×2	500#X2	400	55kW-6	152-208
ZKX2460-B4C	2400×6000	18.5kW-6×2	350#X4	400	55kW-6	176-240
ZKX3053-D2C	3000×5250	22KW-6×2	500#X2	400	75kW-6	240-288

Projects

Sand Making and Washing Project in Jiangmen, GuangdongEPC Aggregate Plant Project in Wenchuan, SichuanAggregate Plant Project of Jintai Mining in Jiangxi

In a comprehensive sand processing plant, what are the primary advantages of integrating washing with fine sand recovery?

Integrating sand washing equipment with a fine sand recycling system improves sand cleanliness while significantly increasing fine particle recovery efficiency.
