Description
The high speed carton folding gluing line’s 2800 type carton folding machine has a maximum blank width of up to1350mm. The standard configuration has two lower gluing units and two upper electronic gluing systems.

This series two-piece folding and gluing system has a feeder driven by an independent motor for handling either one sheet or two sheets. It accurately splices the two pieces of carton with the help of the lateral squaring device. It is ideal for the packaging of three-layer or five-layer large corrugated boards.

Application

The G-FOLD 2800-AC without pre-folding section is suitable for straight-line boxes, crash-lock bottom boxes and other box types.

Produced box type

Straight-line box A: 550 - 2800 mm
B: 100 - 1300 mm
crash-lock bottom box A: 650 - 2800 mm
B: max. 1300 mm
C: min. 120 mm
D: 40 - 200 mm
2-pieces box A: min. 550 mm
B: 100 - 1300 mm

Processed materials

Carton board
Corrugated board

Parameters
Processed materials

Max. Carton board	1200 g/m²
Corrugated flute type	E, C, B, AB, 3-layer or 5-layer

Capacity

Max. speed	200 m/min
Inching speed	20 m/min
Max. Thickness of folded box	20 mm
Max. Blank width	550-1350mm per sheet
Feeding conveyor belt number	8 pieces
Feeding conveying r belt width	60mm
Total press conveyor length	6.5 m
Effective press conveying length	4.7 m

Size and Weights

Length	20.5 m
Width	3.5 m
Height	1.95 m
Weight	14.5 Ton

Installation

Electrical connected load	22.5 kW
Compressed air	6 bar
Air compressor capacity	30 m³/h
Air tank capacity	120 L

folding and gluing system components

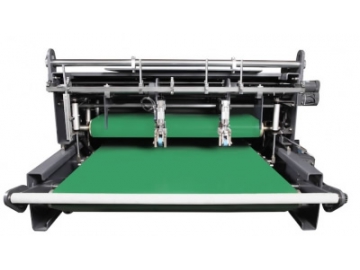

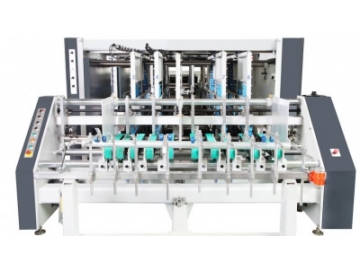

Feeder section
Splice section
Lock bottom section

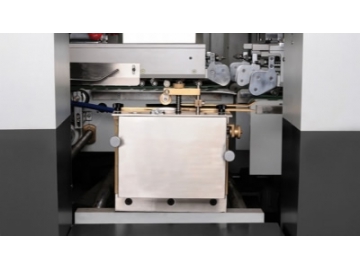

Lower gluing unit

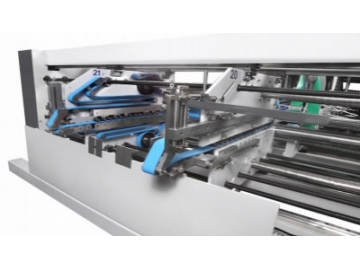

Folding and closing section
Trombone section

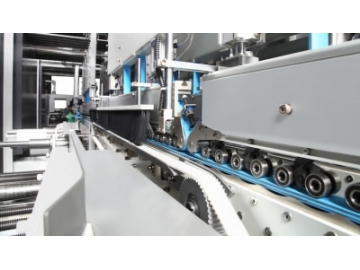

Press section
