Description
The high speed folding and gluing line’s 1100 type folding carton machine is controlled by a servo motor. With the extended crash lock and 3m pre-folder sections, its maximum blank width reaches 1100mm and the processing speed is 500m/min. It is used to produce various boxes with a length of 17.81m and a width of 1.9m, including straight-line boxes, crash-lock bottom boxes, 4 and 6 corners boxes and other box types.

Application

The SMARTFOLD Ultra 1100 – PC is used to produce straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.

The SMARTFOLD Ultra 1100 – SL is used to manufacture straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes and other box types.

Produced box type

straight-line box A: 195 - 1100 mm
B: 100 - 1200 mm
E: 90 - 540 mm
crash-lock bottom box A: 195 - 1100 mm
B: 110 - 1200 mm
E: 90 - 540 mm
double-wall box A: 240 - 1100 mm
B: 100 - 1200 mm
D: 30 - 150 mm
E: 100 - 960 mm
4-corner box A: 160 - 1100 mm
B: 140 - 1200 mm
H: 25 - 150 mm
4-corner box with lid A: 270 - 1100 mm
B: 140 - 1100 mm
H: 25 - 150 mm
6-corner box A: 270 - 1100 mm
B: 140 - 1100 mm
H: 25 - 150 mm

Processed materials

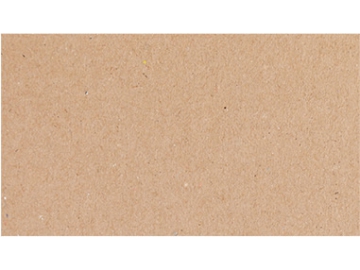

Carton board

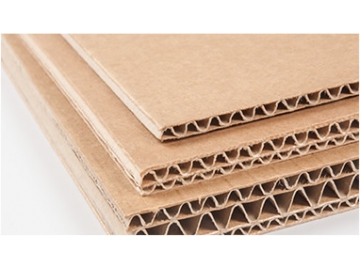

Corrugated board

Parameters
Processed materials

Max. Carton board	800 g/m²
Corrugated flute type	N, E & F

Capacity

Max. speed	500 m/min
Inching speed	30 m/min
Max. Thickness of folded box	20 mm
Max. Blank width	1100 mm
Total length of pressure conveyor section	5.5 m
Effective pressure conveying length	3.1 m
Lower belt width	25mm
Outer belt width	30mm
Feeding conveyor belt number	8 pieces
Feeding belt width	30mm

Size and Weight

Item	PC	SL
Length	17.81 m	17.81 m
Width	1.9 m	1.9 m
Height	1.9 m	1.9 m
Weight	11.3 Ton	11.5 Ton

Installation

Item	PC	SL
Electrical connected load	66 kW	66 kW
Compressed air	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h
Air tank capacity	60 L	60 L

folding carton gluing system components

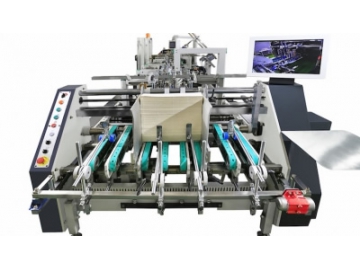

Feeder section

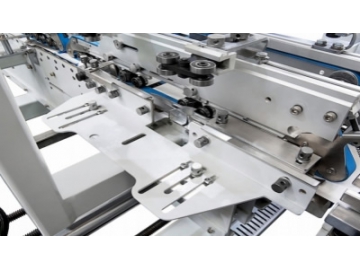

Register table

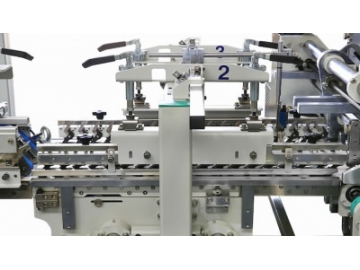

Pre-folding section

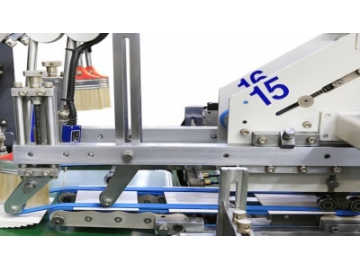

Multi-function section

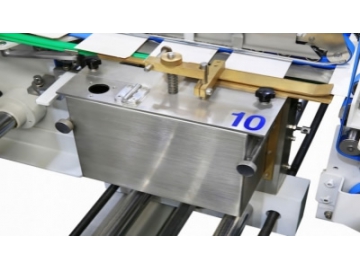

Gluing unit

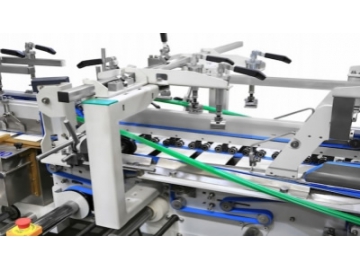

Folding and closing section
Trombone section

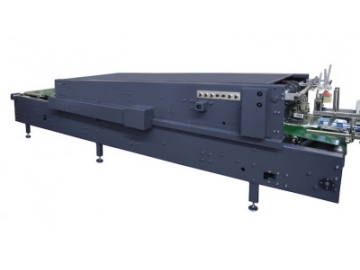

Press section
Back-folding device
