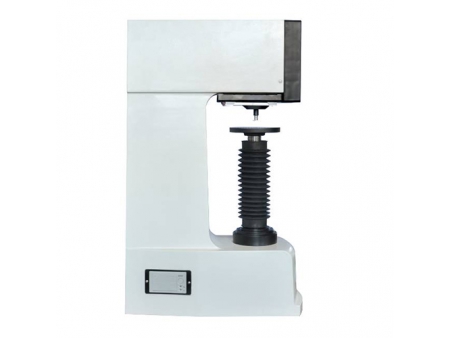

560RSSZ Digital Rockwell Hardness Tester, Automatic Type
Request a Quote
Hardness Testing Machine
Request a quote
- Test force range: 3kgf (29.42N) ~ 150kgf (1471N)
- 560RSSZ Digital Rockwell hardness tester adopts electric loading and unloading of test force, eliminating the use of weight. It supports for testing of Rockwell and superficial Rockwell scales.
- It supports conversion scales of different kinds of hardness.
- This hardness tester features arc correction function.
- Touch screen is equipped for display and operation, capable of displaying dynamic curve and real-time monitioring of the working status of force sensor and displacement sensor.
- One-button operation allows automatic performing of the rising of specimen, the loading, dwelling and unloading of the indenter, displaying of the hardness, and homing of the test table.
Request a quote
- This hardness tester features data storage function, automatic calculation of maximum, minimum and average vaule.
- The test results can be printed for output and a RS232 port is designed for connecting to the computer for output.
- The main body is made from cast aluminum, achieving 99% rigidity and minimizing deformation
- The device integrates a high-precision gravity sensing system with a zero-gap ball screw, ensuring a 1:1 force control ratio for precise and consistent loading every time
- Equipped with a force sensor from a renowned American brand, offering a repeatability of ±0.05%
- Features a screw rod combined with NSK bearings from Japan. After heat treatment, the screw rod achieves a hardness of 35-40HRC, ensuring stable test data across different heights
- High precision travel sensor
- High precision force sensor

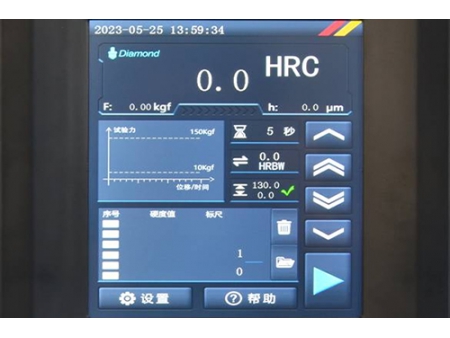

- Operation Interface

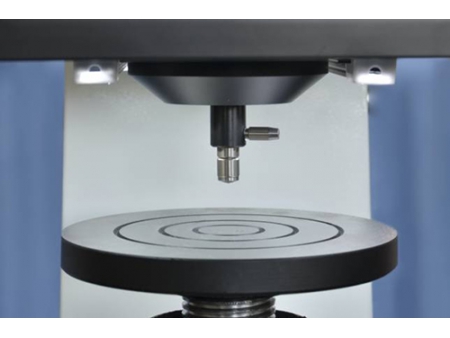

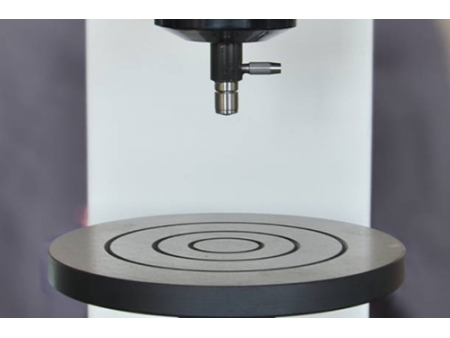

- Indenter and Test Table

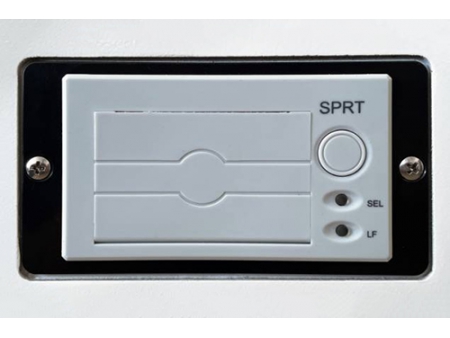

- Built-in Thermal Printer

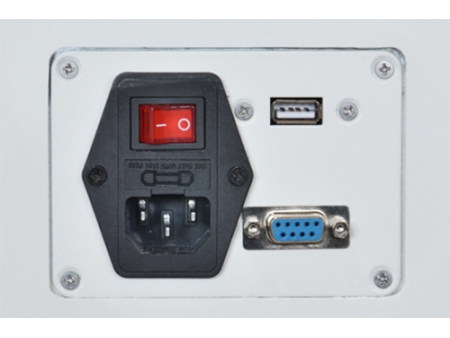

- USB and RS232 Ports
Applications
560RSSZ Digital Rockwell hardness tester is suitable for the testing on hard alloy steel, aluminum alloy, copper alloy, bearing alloy, galvanized, chrome and tin coated materials.
Technical Data
- Pre-load test force: 3kgf (29.42N), 10kgf (98.07N)
- Total test force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
- Max. sample height: 310mm
- Indenter: diamond Rockwell indenter, 1.588mm tungsten carbide ball indenter
- Loading method: automatic (loading/dwell/unloading)
- Hardness reading: LCD touch screen
- Test scale: HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
- Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBS, HBW, HSD, HLD
- Hardness resolution 0.1HR
- Dwell time: 0~99s
- Throat depth: 150mm
- Execute standard: ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2
- Dimension: 535×280×890mm
- Net Weight: 80kg
Optional Accessories

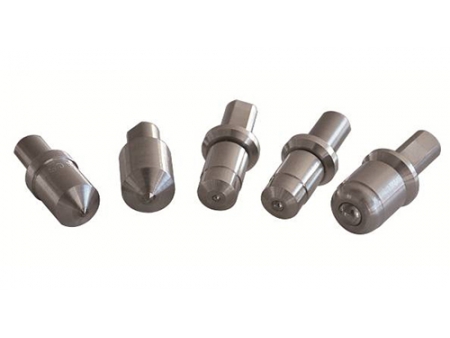

- Indenters

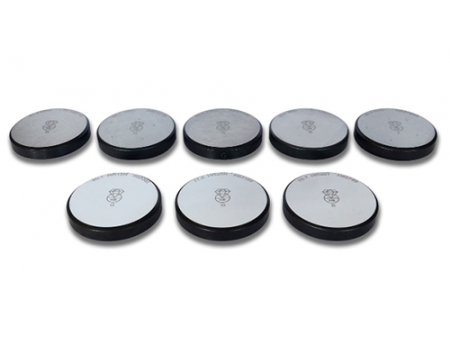

- Hardness Test Blocks

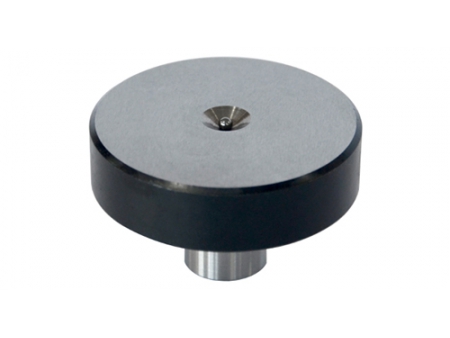

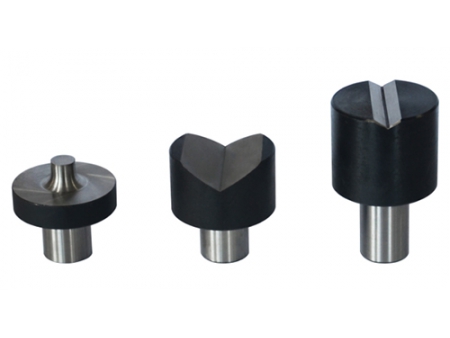

- Spot Anvils / V Anvils
- Hardness Anvils

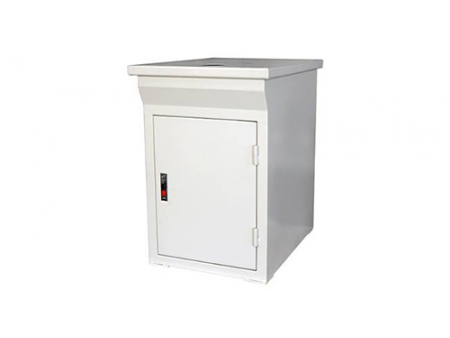

- Floor stand

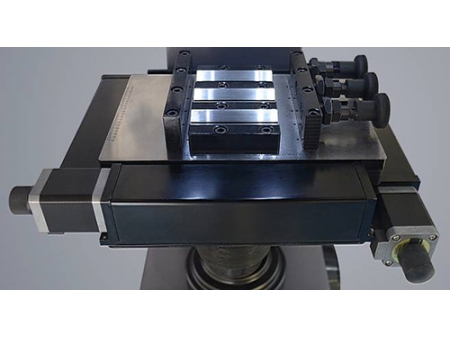

- V3.0 Upgraded Version (Fully Automatic Rockwell Hardness Tester)
