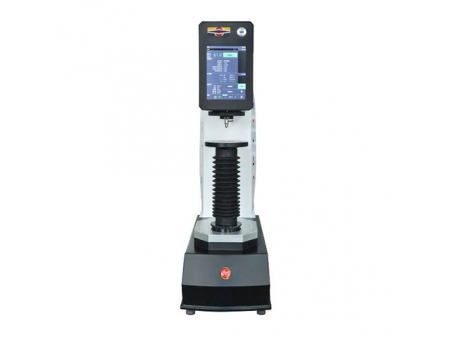

Achieving precise and reliable hardness testing has never been easier with our automatic Rockwell hardness tester. Featuring advanced automation and a weight-loading mechanism, this hardness testing device supports all Rockwell and superficial Rockwell scales, ensuring consistent and accurate measurements. With outstanding repeatability and reproducibility (GRR < 10%), it is a dependable tool for any laboratory or industrial setting.

Request a quote
Features
  • Made using an advanced aluminum alloy die-casting process, the tester boasts a strong and stable housing, achieving 99.7% rigidity
  • This mechanism includes an automatic reset function to prevent contact with the testing device walls, ensuring high accuracy and stability. Calibration and maintenance are straightforward
  • Heat-treated to a hardness of 35-40HRC, the screw rod maintains stable measurements at various heights and minimizes wear and tear for long-term reliability
  • Equipped with a 1:1 high-precision displacement sensor that displays the test depth in real-time, enhancing measurement accuracy
  • Capable of testing all Rockwell and superficial Rockwell scales, the tester automatically adjusts initial and total test forces based on the selected scale
  • The 8-inch high-definition touchscreen simplifies operation, with an upgraded structure and electrical design that improve efficiency and user experience
  • Offers multiple conversion standards, displaying up to four converted hardness values simultaneously for versatile analysis
  • Features multiple language options, including Chinese, English, German, French, Russian, and Japanese, catering to a global user base
  • Streamlines the entire testing process, from sample loading to displaying the hardness value and returning the test table to its initial position
  • Includes data storage management, out-of-tolerance alerts, and automatic calculations of maximum, minimum, and average values. Test results can be exported via USB or connected to a computer through the RS232 interface
Applications

Perfect for a wide range of materials, this hardness tester excels in measuring the hardness of quenched, tempered, annealed, and chilled castings, malleable castings, hard alloy steel, aluminum alloys, copper alloys, and bearing steel. It is also ideal for surface-hardened steel, heat-treated and chemically treated layers, thin plates, and coated materials like galvanized, chrome-plated, and tin-plated surfaces.

Technical Data
Model 580RSSZ
Initial Test Force 3kgf (29.42N), 10kgf (98.07N)
Total Test Force 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter Diamond Rockwell indenter ⌀1.5875mm tungsten carbide ball indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Operation Automatic rising and homing One key to complete
Display and Control 8 inch HD touch screen
Hardness Resolution 0.1HR
Test Scale HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBS, HBW, HSD, HLD Real time conversion and one value multiple switching
Data Statistics Each scale can store 100 pieces, automatically calculating maximum, minimum, and average values
Data Output RS232 for print output (TXT format), PC monitoring and software upgrade RS232 for connecting hardness testing software USB 2.0 for saving test results (CVS files)
Auxiliary Function Upper and lower limit settings Deviation discrimination prompt
Dwell Time 0-99s
Max. Sample Height 300mm
Throat Depth 158mm
Power Supply AC220V, 50Hz
Execute Standard GB/T 230, ISO 6508, ASTM E18, JIS Z2245
Dimension 615×306×925mm
Weight 83kg
Optional Accessories

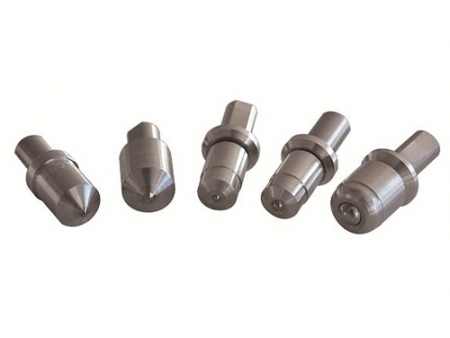

  • Indenter

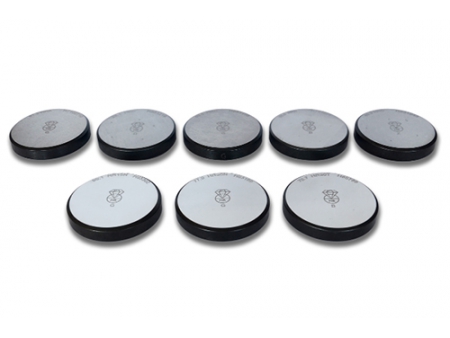

  • Hardness Test Blocks

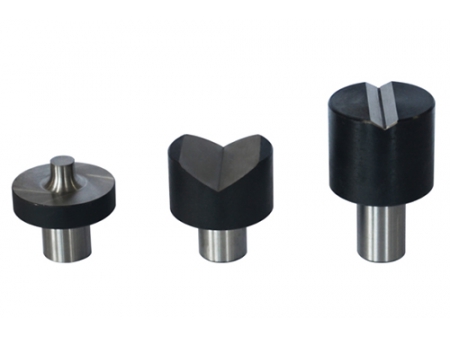

  • Spot Anvils / V Anvils

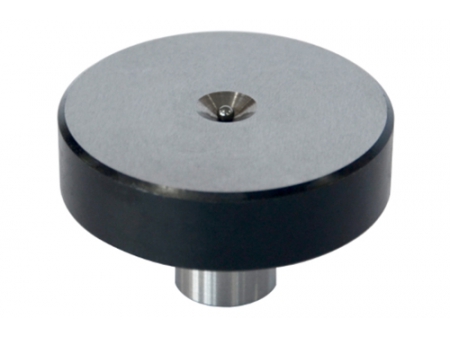

  • Hardness Anvils

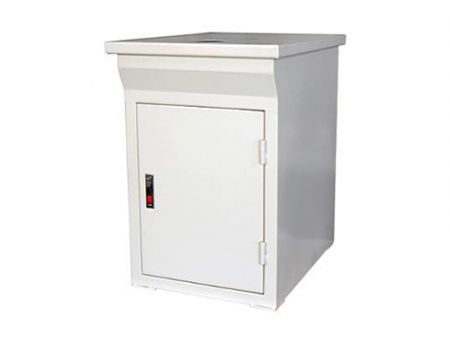

  • Floor Stand
  • V3.0 Upgraded Version (Fully Automatic Rockwell Hardness Tester)
