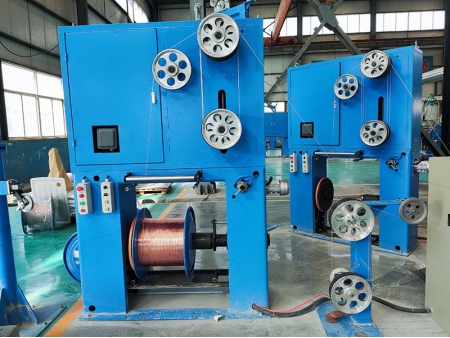

Portal Type Pay-Off & Take-Up (Ø500-800 mm)
Request a Quote
S&A introduces our portal type pay-off and take-up machine, designed for wire unreeling and take-up operations in cable manufacturing processes. This machine is specifically engineered for wire and cable extrusion lines, rewinding, and more.
Features
- Fast Pay-Off Speed: Our portal type unreeling machine enables rapid wire unreeling, increasing production efficiency.
- Active Wire Pay-Off: This portal type pay-off machine actively pays off the wire, minimizing wire elongation due to small diameters.
- Integrated Pay-Off and Storage: This portal type unreeling machine combines wire pay-off and storage functions, optimizing vertical storage space.
Specifications
| Specification | PND500/630 | PND630/800 |
| Bobbin Size (mm) | 500/630 | 630/800 |
| Max. Dia. of Flange (mm) | 500 | 630 |
| Min. Dia. of Flange (mm) | 630 | 600 |
| Center Hole (mm) | Ø75 | Ø75 |
| Range of Wire Diameter (mm) | Ø1.0-5.0 | Ø1.0-5.0 |
| Rotate Speed (rpm) | 7/17/37 | 7/17/37 |
| Motor Power (kW) | 5.5 | 7.5 |
| Max. Reel Weight (kg) | 600 | 900 |
