Hanging Pintle Portal Pay-Off & Take-Up
Request a Quote

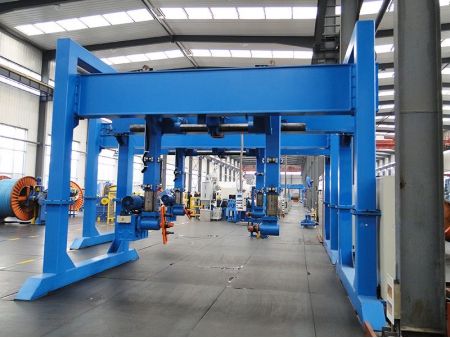

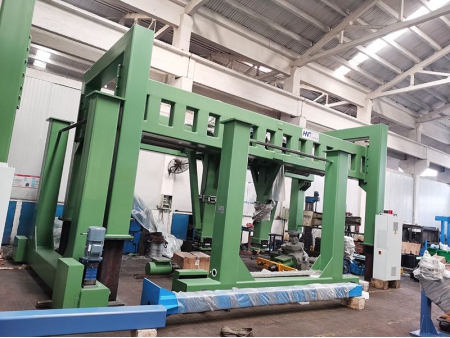

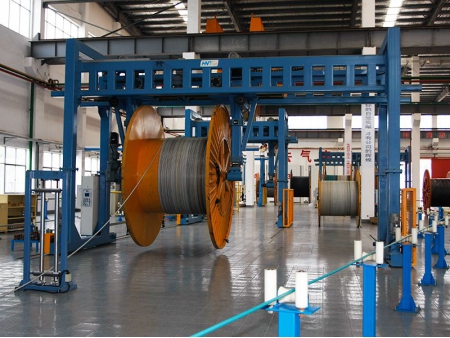

S&A presents our hanging pintle portal pay-off and take-up, offering efficient and versatile solutions for pay-off and take-up processes in the cable and wire industry. This pay-off and take-up system is specifically designed to cater to various cable production processes, including cable extrusion, cable stranding, cable armoring, cable rewinding, and more.
Features
- Select between speed or tension control modes based on your specific requirements.
- Easily adjust the tension range from 100N to 3500N to ensure proper handling of different wire types.
- Our pay-off and take-up machines are designed to handle a wide range of wire diameters, providing flexibility in your production processes.
- Experience seamless direction switching and adjust the clamping force according to your needs for efficient pay-off and take-up.
- The pay-off and take-up machines are equipped with an electrical control cabinet, operating panel, and touch screen interface for convenient operation and control.
Specifications of HT(HP) Suspension Type Take-up/Pay-off Machine
| Model | HT25 | HT32 | HT36 | HT42 |
| Reel diameter | 1250/2500 | 1600/3200 | 2000/3600 | 2500/4200 |
| Max flange diameter (mm) | 2500 | 3200 | 3600 | 4200 |
| Min flange diameter (mm) | 1250 | 1600 | 2000 | 2500 |
| Min overall width (mm) | 900 | 1180 | 1500 | 1900 |
| Max overall width (mm) | 1900 | 2120 | 2300 | 2400 |
| Min barrel diameter (mm) | 500 | 800 | 2500 | 2800 |
| Bore (mm) | 80 (100-125) | 80(100-125) | 200 | 200 |
| Min wire diameter (mm) | 7 | 8 | 20 | 30 |
| Max wire diameter (mm) | 70 | 120 | 140 | 160 |
| Max rotation speed (RPM) | 7/17/37 | 7/17/37 | 6/12/22 | 6/12/22 |
| Traverse range (mm) | 8-90 | 9-120 | 20-140 | 30-160 |
| Max reel weight (kg) | 12000 | 18000 | 25000 | 30000 |
Specifications of TSXY Suspension Type Take-up/Pay-off Machine
| Model | TSXY800 | TSXY81250 | TSXY1600 | TSXY2000 |
| Reel diameter | 500/800 | 630/1250 | 800/1600 | 1000/2000 |
| Max flange diameter (mm) | 800 | 1250 | 1600 | 2000 |
| Min flange diameter (mm) | 500 | 630 | 800 | 1000 |
| Min overall width (mm) | 375 | 475 | 600 | 750 |
| Max overall width (mm) | 600 | 950 | 1180 | 1500 |
| Min barrel diameter (mm) | 355 | 450 | 500 | 560 |
| Bore (mm) | 80(100-125) | 80(100-125) | 80(100-125) | 80(100-125) |
| Min wire diameter (mm) | 1000 | 1200 | 2000 | 2500 |
| Max wire diameter (mm) | 3 | 5 | 8 | 10 |
| Max rotation speed (RPM) | 40 | 50 | 60 | 80 |
| Traverse range (mm) | 50 | 50 | 50 | 50 |
| Max reel weight (kg) | 3-40 | 5-50 | 8-60 | 10-80 |
