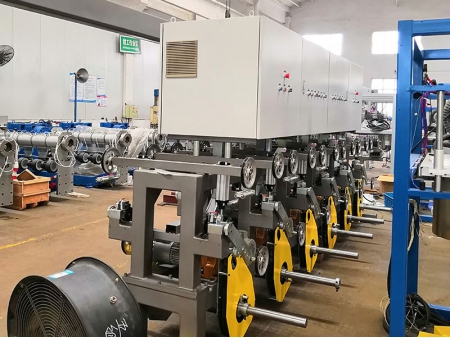

Our multi head pay-offs provide constant tension and twist-free wire pay-off, accommodating single wire pay-off or multiple wire pay-off. Each wire reel operates independently, ensuring efficient and space-saving wire pay-off.

Discover the versatility of our multi head pay-off machine, suitable for various applications such as cable and elevator steel tape pay-off.

Features
  • Space-Saving Design: Multiple wire pay-off units are consolidated, optimizing space utilization.
  • Independent Control: Each wire reel can be controlled individually or synchronized with other reels.
  • Simultaneous Pay-Off: Our multi head pay-off machine allows simultaneous pay-off of multiple wire reels.
Specifications
Specification PND500/630
Bobbin Size (mm) 500/630
Max. Dia. of Flange (mm) 500
Min. Dia. of Flange (mm) 630
Center Hole (mm) Ø75
Range of Wire Diameter (mm) Ø1.0-5.0
Rotate Speed (rpm) 7/17/37
Motor Power (kW) 5.5
Max. Reel Weight (kg) 600
