Cantilever Motorized Pay-Off
Request a Quote

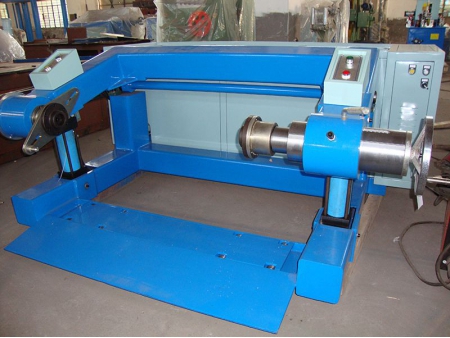

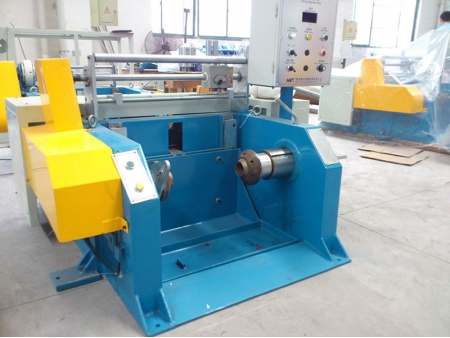

Discover the efficiency of wire and cable pay-off processes with our cantilever motorized pay-off machine. This series of pay-off machines are the single-shaft cantilever type, suitable in a wire manufacturing production line or solely winding process. The shafts are supported by oil-pressure mechanical arms, and the movements of the shafts are controlled by motor.
Features
- Single-Shaft Cantilever Design: The machine features a stable and sturdy single-shaft cantilever design, ensuring consistent performance.
- Oil-Pressure Mechanical Arms: The wire spools are supported by oil-pressure mechanical arms, providing reliable support for smooth wire pay-off.
- Motorized Shaft Movements: The shaft movements are controlled by a motor, ensuring precise and coordinated wire pay-off actions.
Specifications
Coil outer diameter (mm) | Ø180 - 300 |
Coil inner diameter (mm) | Ø140 |
Coil height (mm) | 50 - 100 |
Production speed (coils/min) | 6 |
Max weight of coil (kg) | 20 |
Film material | POF, PVC |
Packing method | Fully covered |
Specifications of Bilateral Shaft Pay-off
Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
Specifications of Unilateral Shaft Pay-off
Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
PFS-630M | 400 - 630 | 300 - 475 | 600 |
PFS-800M | 630 - 800 | 475 - 600 | 1000 |
PFS-1000M | 800 - 1000 | 600 - 750 | 1500 |
PFS-1250M | 1000 - 1250 | 750 - 950 | 2500 |
