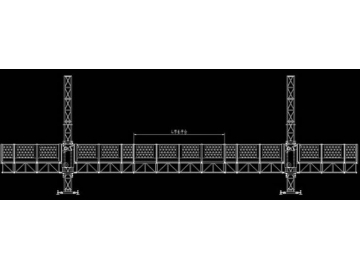

Double mast climbing work platform
| No. | Item | Double mast climbing work platform |
| 1 | Model | STC100 |
| 2 | Rated load when the platform reaches its max. length | 1400kg |
| 3 | Max. carrying capacity | 6 persons |
| 4 | Rated lifting speed | 8.3 m/min |
| 5 | Max. operating height | 150 m |
| 6 | The distance above the last tie-in | 4.0 m |
| 7 | Max. length of platform | 23.6 m |
| 8 | Basic platform width | 1.5 m |
| 9 | Max. platform width after extension | 2.5 m |
| 10 | The first tie-in from the ground | 3~4 m |
| 11 | Tie-in spacing | About 6m |
| 12 | Standard section size | 1508×500×500 mm |
| 13 | Motor model | TYHI100L1-4 |
| 14 | Motor power | 4*2.2 kW |
