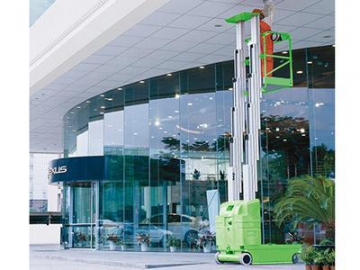

Aluminum Alloy Aerial Work Platform
Introduction
The aluminum alloy aerial work platform features synchronous lifting and descending. It is made of a high intensity aluminum alloy profile, with the deflection and vibration rates being extremely small, so that the platform has an excellent stability. The platform is compact, with lifting and lowering balanced, with easy operation. The aerial work platform is widely used in hotels, factories, supermarkets and other areas where work at different heights needs to be carried out, and with its narrow width, is suitable for a variety of small spaces. It is widely used for changing lamps, cleaning glass and fixing tile and wallpaper, and other tasks. We also offer non-standard products based on application environments, thus suiting different requirements.
- The mast for the platform is made of a light weight, high intensity and corrosion resistant aluminum alloy profile.
- When working on uneven surfaces, the platform automatically protects itself, thus facilitating the safety of aerial workers.
- The platform is equipped with solid rubber tires that feature an excellent slipping resistance. This makes it ideal for just about any floor type.
| Type | ||||
| Safe working load (kg) | 125 | 125 | 200 | 150 |
| Max platform height (m) | 6 | 7.5 | 7.5 | 9 |
| Total length (m) | 1.36 | 1.36 | 1.0 | 1.0 |
| Total width (m) | 0.79 | 0.79 | 0.81 | 1.15 |
| Total height (m) | 2.08 | 2.08 | 2.08 | 2.08 |
| Platform dimension (L × W) (m) | 0.78 × 0.70 | 0.78 × 0.70 | 1.00 × 0.70 | 1.00 × 0.70 |
| Min ground clearance | 0.05 | 0.05 | 0.05 | 0.05 |
| Wheel base (m) | 1.15 | 1.15 | 1.15 | 1.15 |
| Max gradeability | 25% | 25% | 25% | 25% |
| Max working angle | 1.5° | 1.5° | 3° | 3° |
| Driving wheel | Φ0.23 × 0.08m | Φ0.23 × 0.08m | Φ0.25 × 0.08m | Φ0.25 × 0.08m |
| Front wheel | 8in | 8in | 8in | 8in |
| Driving motor | 2x24V/0.4kW | 2x24V/0.4kW | 2x24V/0.5kW | 2x24V/0.5kW |
| Lifting motor | 24V/2kw | 24V/2kw | 24V/2kw | 24V/2kw |
| Storage battery | 2× 12V/115Ah | 2× 12V/115Ah | 2× 12V/115Ah | 2× 12V/115Ah |
| Charger | 24V/12A | 24V/12A | 24V/12A | 24V/12A |
| Total weight (kg) | 850 | 880 | 1100 | 1250 |
