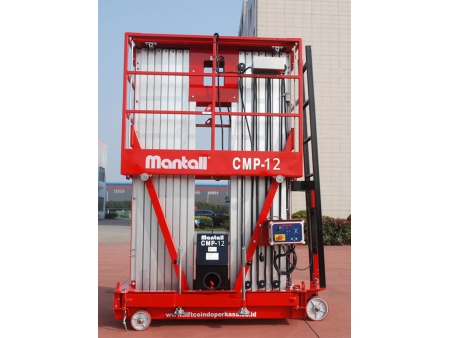

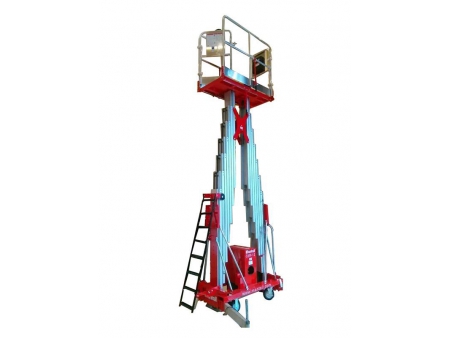

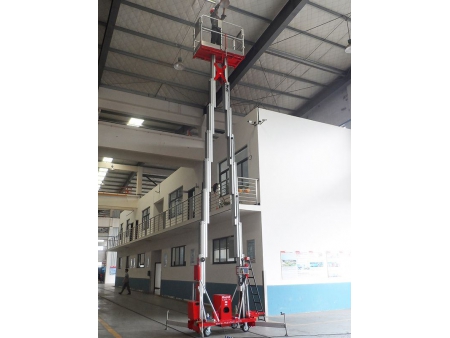

Double Mast Aerial Work Platform CMP Series

Mantall CMP series double mast aerial work platforms are economical and portable elevated working platforms that can lift two workers and their tools safely and stably, with a maximum working height of 18 meters. The double mast aerial work platform provides exceptional stability with a high strength aluminum mast system and heavy-duty lifting chains, ensuring the safety of workers. The robust steel chassis is utilized to further guarantee the safety even when the aerial work platform runs on a harsh working environment. The large platform provides ample space for workers to perform their jobs with ease. In addition, our double mast aerial work platform is provided with dual control system that enables the platform to be moved up and down by simply controlling from either the platform or ground control station.

CMP-S
Video
Standard Features
  • Aluminum Platform Basket
  • Polyurethane Non-mark tires
  • Forklift Pockets
  • Foldable Inclined Ladder
  • Two controls: Platform Control and Ground Control
  • Lower Beeper warning
  • Rotation Platform (CMP18 only)
  • Emergercy Lower Down
  • Outrigger Storage Frame
  • Maintenance-free battery
Optional
  • Door Type wide Platform
  • Narrow/Rough Ground Chassis
  • Wide Chassis
  • DC Power
  • Tool Box
  • Platform Positioning Laser light
  • Fluorescent Tubes Box
  • Working Flashing Beacon
  • Top Limit Protection Auto-stop device
  • Auxiliary drive wheel
  • Equipment Protection cover
Specifications
Model
CMP-10-S
CMP-12-S
CMP-14-S
CMP-18-RB
Max. Working height H1 10 m 12 m 14 m 18 m
Max. Platform height H2 8 m 10 m 12 m 16 m
Lift capacity 272 kg 200 kg 150 kg
Platform size B*C*A 1.37*0.7*1.1 1.37*0.7*1.1 1.5*0.7*1.1 1.49*0.78*1.1
Overall length E 1.48 m 1.6m 2m
Width F 0.8 m 0.85 m
Stowed Height D 1.98 m 2.77 m
Outrigger expansion I*K 1.9/2.1 m 2.5/2.1 m 2.98/2.81 m
Min. ground clearance 0.04 m 0.02 m
Power unit(AC) 220V/1.5KW
Power unit(DC) 12VDC/1.6KW
Battery 12V/120Ah
Charger 12V/15A
Casters (front wheels) 8in
Casters (Rear Wheels) 8in 6in
Stowed size after rotation / / / 2.7*0.85*1.98 m
Weight(KG) 760 kg 802 kg 1100 kg 1540(AC)/1560(DC) kg
Working Heights
Stowed Dimensions
CMP-CT
Video
Standard Features
  • Polyurethane Non-mark tires
  • Forklift Pockets
  • Foldable Inclined Ladder
  • Two controls: Platform Control and Ground Control
  • Lower Beeper warning
  • Emergercy Lower Down
  • Maintenance-free battery
Optional
  • Narrow/Rough Ground Chassis
  • DC Power
  • Tool Box
  • Platform Positioning Laser light
  • Fluorescent Tubes Box
  • Working Flashing Beacon
  • Top Limit Protection Auto-stop device
  • Auxiliary drive wheel
  • Equipment Protection cover
Specifications
Model
CMP12CT
CMP14CT
CMP16CT
Max.Working height H1 12 m 14 m 16 m
Max. Platform height H2 10 m 12 m 14 m
Lift capacity 250 kg 200 kg 150 kg
Platform size B*C*A 1.44*0.6*1.1 m
Overall length E 1.74 m 1.81 m 1.81 m
Width F 0.81 m
Stowed Height D 1.86 m 2.08 m 2.36 m
Outrigger expansion I*K 2.45*2.34 m
Minimum ground clearance 0.07 m
Power unit(AC) 220V/1.5KW
Power unit(DC) 12VDC/1.6KW
Battery 12V/120Ah
Charger 12V/15A
Casters (front wheels) 8 in
Casters (Rear Wheel) 6 in
Weight(KG) 760(AC)/830(DC) 844(AC)/880(DC) 909(AC)/940(DC)
Working Heights
Stowed Dimensions
