Efficient Wire and Cable Hauling with our Caterpillar Haul Off Unit

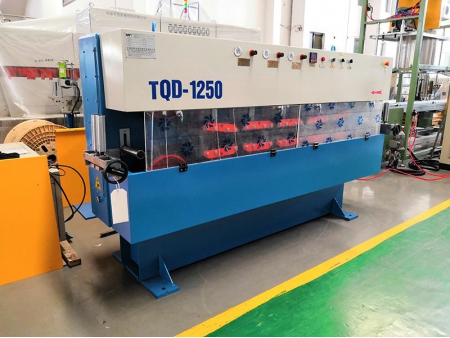

S&A presents our caterpillar haul off unit, also known as the belt caterpillar capstan, designed to enhance the wire and cable pulling and transferring in wire and cable manufacturing production lines. Our caterpillar haul off machines are typically installed in extrusion lines, armoring lines, rewinding lines, and more, providing reliable and efficient wire and cable hauling capabilities.

Features

Robust Construction: The main frame of the caterpillar haul off unit is made of high-quality welded steel plates, ensuring excellent rigidity and overall stability. It is easy to install and operate.

No Bending or Deformation: The products being pulled do not experience bending or deformation. The pulling force and speed can be adjusted within a wide range to accommodate various wire and cable production specifications.

Pneumatic Tension Control: The belt traction mechanism utilizes pneumatic cylinders with corresponding upper and lower pressure roller devices. The pressure can be adjusted through a manual control valve, meeting the requirements of different cable processes.

Horizontal and Vertical Wire Guides: The haul-off unit is equipped with horizontal and vertical wire guides, ensuring consistent running center for the cable during the hauling process.

Specifications

Model	Max pulling force (kg)	Applicable cable diameter (mm)	Gripping length (mm)	Belt width (mm)	Max line speed (m/min)
TQD-200	200	≤Ø15	250	60	200
TQD-500	500	≤Ø30	450	70	150
TQD-800	800	≤Ø10	1300	80	120
TQD-1250	1250	≤Ø60	1500	90	100
TQD-1600	1600	≤Ø80	1900	110	80
TQD-2000	2000	≤Ø100	2300	120	80
TQD-2500	2500	≤Ø120	2500	140	60
TQD-3200	3200	≤Ø150	2800	160	60
TQD-4000	4000	≤Ø180	3500	180	30
TQD-5000	5000	≤Ø200	4000	180	30
