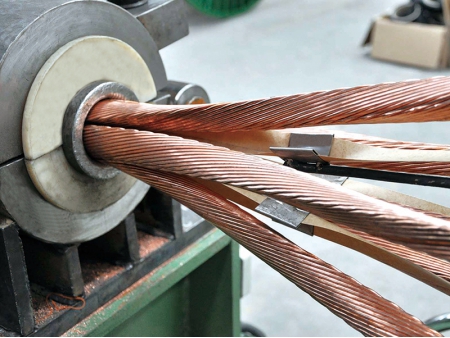

Stranding machine for cabling, screening and armoring of conductors

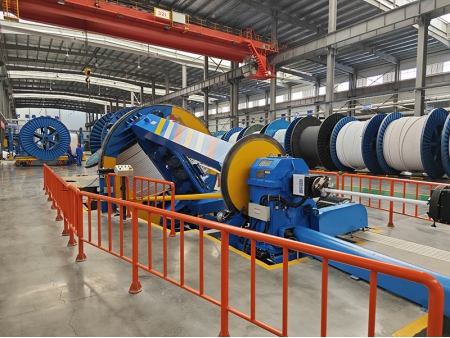

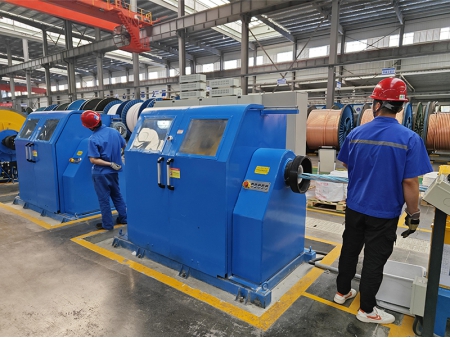

The CPD drum twister with caterpillar is a versatile machine designed for cabling, screening, and armoring of conductors. It is ideal for producing power cables, multi-strand segmented conductors, and for processes involving steel wire armoring, non-metallic wrapping, and steel tape armoring.

Features

Accommodates reel sizes ranging from 2000mm to 4200mm, meeting the production requirements for various cable diameters and lengths.

Features a programmable controller and touch screen for real-time operation monitoring. The touch screen allows for setting, modifying, and displaying lay lengths, as well as setting left or right lay direction, and making fine adjustments.

The rotating pay-off stand can switch between multiple functions, including independent stopping, full machine synchronization, and individual speed control via a phase detector, catering to different cable production processes and ensuring high-precision stranding for shaped cables.

Each unit is driven by an independent motor, making installation, operation, and maintenance simple and convenient. Motor feedback through encoders ensures high-precision control.

Includes a centralized steel wire pay-off stand positioned on both sides of the main unit, reducing the overall production line length and minimizing factory investment costs.

The take-up and pay-off stands can handle different reel widths within a specified range without the need for modifications.

All lifting mechanisms use a hydraulic lift platform, providing ease of use and efficient operation.

Specifications

Bobbin diameter (mm)		Max. rotation speed (r/min)		Max. finished cable diameter (mm)	Bobbin load capacity (T)		Wire quantity	Wire diameter (mm)
Pay-offs	Take-ups	Cradle type	Fork type	Max. finished cable diameter (mm)	Pay-offs	Take-ups	Wire quantity	Wire diameter (mm)
1000	1600	100	100	60	2	8	48\72\96\108	1.3-3.2
1250	2000	80	70	90	3	10		1.3-3.2
1600	2500	70	60	100	5	12		1.3-3.2
2000	3150	50	45	120	10	20		1.3-3.2
2500	3600	30	25	130	12	25		1.3-3.2
2500	4000	30	25	130	12	30		1.3-3.2
2500	4200	30	25	130	12	30		1.3-3.2
