Inter-Rock EC series rim cylinder is well suitable for night latches on external doors, basically designed to be opened on the outside using a key and operated by a lever on the inside. The rim cylinder is also suitable for doors when locks become damaged or broken. Actually, there is no need to worry about it, and you don’t necessarily need to replace the entire door.

As you know, most rim cylinders feature a 5-lever mechanism. However, Inter-Rock rim cylinder offers extra security and conforms to EN 1303:2015. It has a fully restricted profile and is especially applicable for commercial applications where key control and high usage is required.

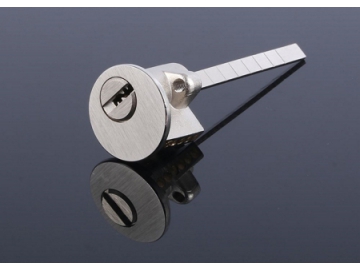

Rim Cylinder (with standard key), EC-N

Model: EC-N
Lock cylinder type: Rim cylinders with standard keys
Lock cylinder size: 29.2×35.2mm
Lock cylinder material: Brass
Pin tumbler: 5/6 pins
Surface treatment: Nickel-plated, or as per customer request
Key: Supplied with 3 standard keys, key thickness of 2.2mm
Color: Customized
Certificate: EN 1303:2015
Warranty: 5 years performance warranty (security and safety assured)

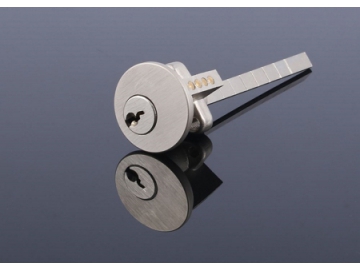

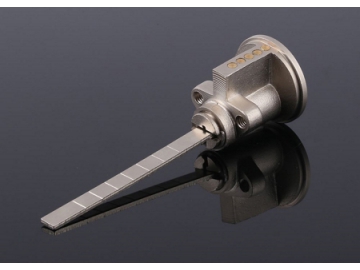

Rim Cylinder (with dimple key), EC-D

Model: EC-D
Lock cylinder type: Rim cylinders with dimple keys
Lock cylinder size: 29.2×35.2mm
Lock cylinder material: Brass
Pin tumbler: 6 pins
Surface treatment: Nickel-plated, or as per customer request
Keyed alike cylinder: can be provided according to customers’ requirements
Key: Supplied with 5 dimple keys, key thickness of 2.8mm
Color: Customized
Certificate: EN 1303:2015
Warranty: 5 years performance warranty (security and safety assured)
